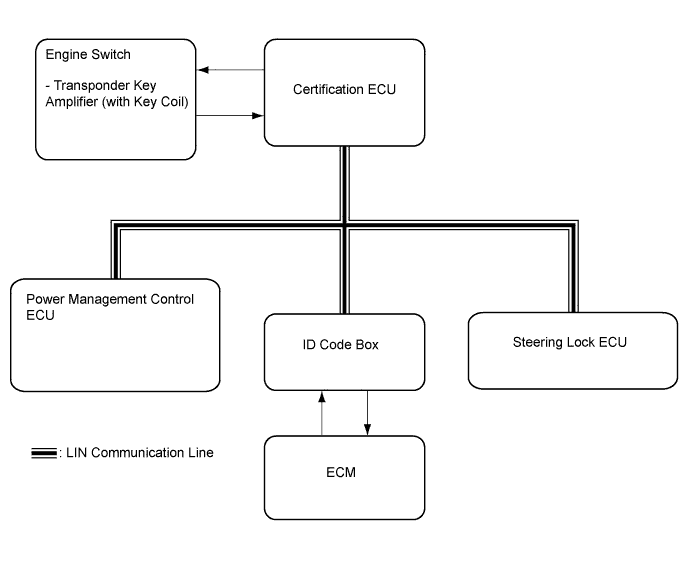

ENGINE IMMOBILISER SYSTEM (w/ Entry and Start System) SYSTEM DIAGRAM

Communication Table
Transmitting ECU (Transmitter)	Receiving ECU (Receiver)	Signal	Communication Method
Certification ECU	Power management control ECU	Double lock fail-safe unset signal Engine immobiliser system set/unset signal	LIN
Certification ECU	Power management control ECU	Engine start signal Transponder valid signal Steering unlock demand signal Steering lock demand signal
Power management control ECU	Certification ECU	Key code recognition signal Engine start operation signal ACC relay activation signal IG relay activation signal
ID code box	Certification ECU	Matching request random number signal EFI code reception signal Engine start permission demand reception signal S code verification result signal L code verification result signal Steering unlock demand reception signal Steering lock demand reception signal
ID code box	Steering lock ECU	Steering lock release signal Matching request random number signal
Steering lock ECU	Certification ECU	L code verification signal
