ROOF HEADLINING (for Wagon) DISASSEMBLY


  1. REMOVE LENS COVER (for Cold Area)

    A006V4W

    Tech Tips

    Use the same procedure to remove the lens cover on the other side.


    1. Remove the lens cover.

  2. REMOVE VANITY LIGHT ASSEMBLY

    A006UO9E02
    Text in Illustration
    *1 Claw (A)
    *2 Claw (B)
    *3 Bulb Holder

    Tech Tips

    Use the same procedure to remove the vanity light on the other side.


    1. Detach the 2 claws (A) and separate the bulb holder from the vanity light as shown in the illustration.

    2. Detach the claw (B) and remove the vanity light.

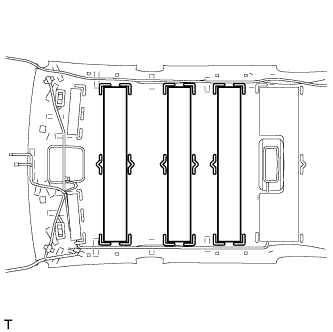

  3. REMOVE NO. 1 ROOF SILENCER PAD (w/o Roof Sunshade System)

    A006VNQ

    1. Remove the 3 No. 1 roof silencer pads.

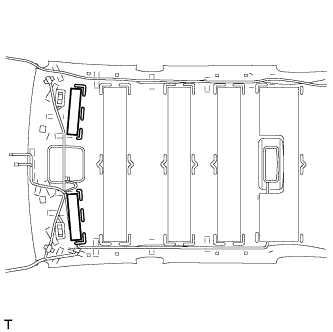

  4. REMOVE NO. 2 ROOF SILENCER PAD (w/o Roof Sunshade System)

    A006UOQ

    1. Remove the 2 No. 2 roof silencer pads.

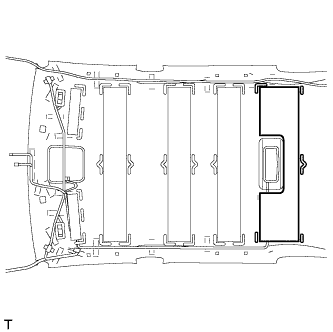

  5. REMOVE NO. 3 ROOF SILENCER PAD (w/o Roof Sunshade System)

    A006V9V

    1. Remove the No. 3 roof silencer pad.

  6. REMOVE NO. 6 ROOF SILENCER PAD (for Cold Area)


    1. Remove the 4 No. 6 roof silencer pads.

      A006VYZE01

  7. REMOVE NO. 1 ROOF WIRE

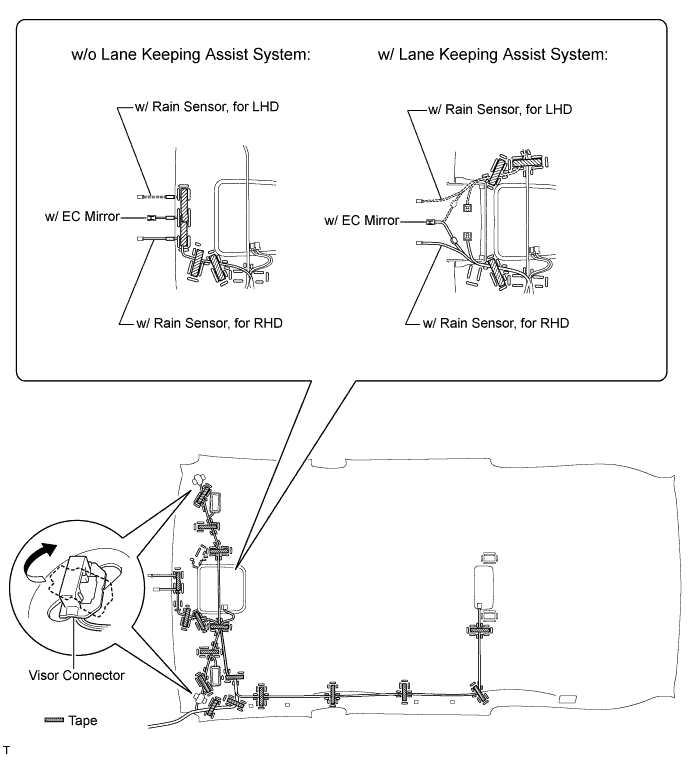

    1. w/o Roof Sunshade System:


      1. Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining.

      2. Remove each piece of tape and the No. 1 roof wire.

        A006V1JE02

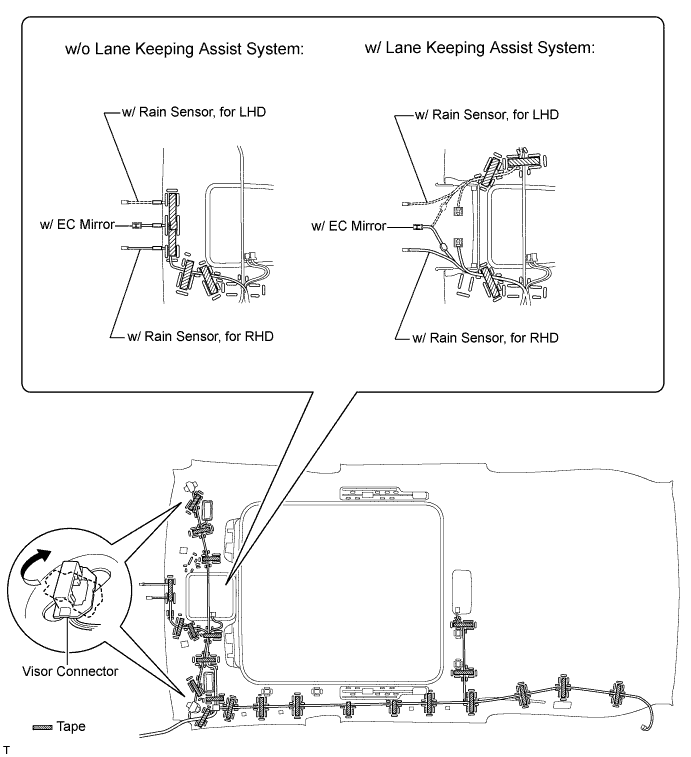

    2. w/ Roof Sunshade System:


      1. Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining.

      2. Remove each piece of tape and the No. 1 roof wire.

        A006UQDE02

  8. REMOVE AMPLIFIER ANTENNA ASSEMBLY


    1. w/o Panorama Roof:

      Remove all the tape and the antenna cord from the roof headlining.

      A003B25

    2. w/ Panorama Roof

      Remove all the tape and the antenna cord from the roof headlining.
