AIR CONDITIONING AMPLIFIER INSTALLATION

Tech Tips


  • Use the same procedure for LHD and RHD vehicles.

  • The procedure listed below is for LHD vehicles.


  1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

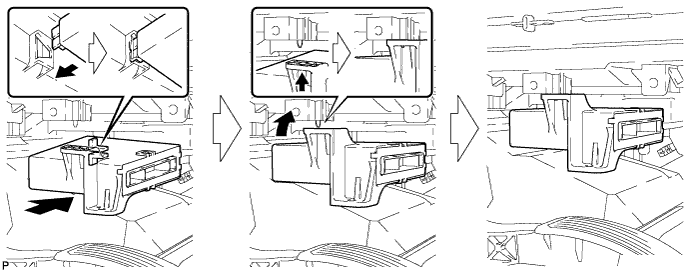

    1. Install the air conditioning amplifier assembly as shown in the illustration.

      A003BUQ
    2. A003COP

      Install the screw.

    3. Connect each connector.

  2. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL


    1. A00OT9HE01
      Text in Illustration
      *1 Guide
      *2 Clamp

      Attach the guide near the front of the vehicle.

    2. Attach the clamp.

    3. Attach the 2 clips and 5 claws to install the finish panel.
