PTC HEATER ASSEMBLY (w/ PTC Heater) INSPECTION


  1. INSPECT PTC HEATER ASSEMBLY

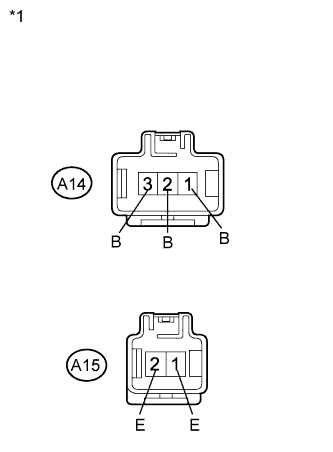

    1. A006T81E14
      Text in Illustration
      *1

      Component without harness connected

      (PTC Heater)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      A44-1 (B) - A45-1 (E) Always Below 1 kΩ
      A44-2 (B) - A45-2 (E) Always
      A44-2 (B) - A45-1 (E) Always
      A44-3 (B) - A45-2 (E) Always

      If the result is not as specified, replace the PTC heater assembly.
