REAR SEAT OUTER BELT ASSEMBLY (for Wagon) REMOVAL

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.


  1. REMOVE REAR BENCH TYPE SEAT CUSHION ASSEMBLY

    A003ATB

    1. Detach the 2 front hooks of the seat cushion from the vehicle body.

      Note

      Follow the instructions below carefully as the cushion frame deforms easily.


      1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.

      2. Repeat for the other hook.

    2. Detach the 2 rear hooks of the seat cushion from the seatback.

      Note

      Be careful not to damage the vehicle body.

  2. REMOVE REAR SIDE SEATBACK ASSEMBLY LH

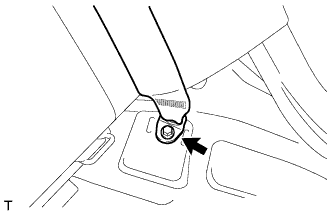

    A00OKLF

    1. Remove the bolt and disconnect the outer belt anchor.

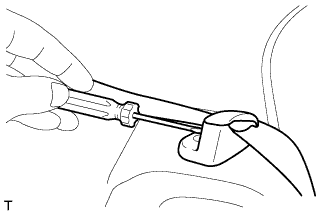

    2. A00OMO7

      Using a screwdriver, detach the claw to open the cap of the rear seat shoulder belt guide.

    3. Remove the seat belt from the belt guide.

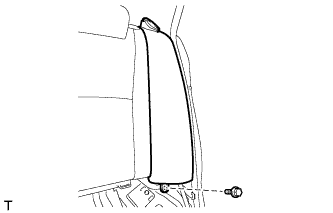

    4. A00OMLO

      Remove the bolt and side seatback LH.

  3. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    A00OSNY

    1. Pull the lever and remove the tonneau cover.

  4. REMOVE ROOM PARTITION NET ASSEMBLY (w/ Partition Net)

    A00OR3J

    1. Push the 2 buttons and remove the room partition net.

  5. REMOVE LOWER DECK TRIM SIDE BOARD LH (w/ Partition Board)


    1. Remove the lower deck trim side board.

  6. REMOVE DECK BOARD ASSEMBLY

    A00OQO7

    1. Detach the clip and 2 guides, and remove the deck board.

  7. REMOVE DECK BOARD SUB-ASSEMBLY

    A00OS46

    1. Pull the lever and remove the deck board.

  8. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY


    1. Detach the clip and remove the No. 3 deck board.

      A00OR6BE01

  9. REMOVE REAR DECK FLOOR BOX


    1. Detach the 7 guides and remove the rear deck floor box.

      A00OUVIE01

  10. REMOVE FLOOR SIDE RAIL LH (w/ Deck Rail)

    A00OUPD

    1. Remove the 3 bolts and floor side rail.

  11. REMOVE NO. 2 DECK SIDE TRIM COVER (w/o Deck Rail)

    A00OVHP

    1. Detach the 2 clips and 3 guides, and remove the deck side trim cover.

  12. REMOVE NO. 6 DECK SIDE TRIM COVER (w/o Deck Rail)

    A00OQJ8

    1. Detach the 3 claws and remove the No. 6 deck side trim cover.

  13. REMOVE ROPE HOOK ASSEMBLY (w/o Deck Rail)

    A00OQZV

    Tech Tips

    Use the same procedure for all the rope hooks.


    1. Remove the bolt and rope hook.

  14. REMOVE DECK FLOOR BOX LH

    A00OT7E

    1. Remove the bolt.

    2. Detach the 5 guides and remove the deck floor box.

  15. REMOVE REAR FLOOR FINISH PLATE

    A00OU9R

    1. Detach the 4 clips and remove the rear floor finish plate.

  16. REMOVE REAR DOOR SCUFF PLATE LH

    A00OUXN

    1. Detach the 6 claws and clip, and remove the rear door scuff plate.

  17. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Tech Tips

    Partially remove the rear door opening trim weatherstrip LH so that the deck trim side panel LH can be removed Click here.

  18. REMOVE BACK DOOR WEATHERSTRIP


    1. Partially remove the back door weatherstrip so that the deck trim side panel LH can be removed Click here.

  19. REMOVE INNER ROOF SIDE GARNISH CAP LH

    A00OVZLE01
    Text in Illustration
    *1 Protective Tape

    1. Put protective tape around the inner roof side garnish cap.

    2. Using a screwdriver, detach the 2 claws and remove the inner roof side garnish cap.

      Tech Tips

      Tape the screwdriver tip before use.

  20. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH


    1. Remove the bolt and clip.

    2. Detach the 7 clips and 3 claws.

    3. Pass the fuel lid opener cable through the panel, disconnect the connector, and then remove the deck trim side panel.

      A00OUSXE01
      Text in Illustration
      *1 Fuel Lid Opener Cable - -

  21. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

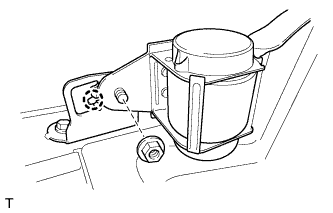

    A00ON4U

    1. Remove the nut and 3 point type belt.

  22. REMOVE OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY LH

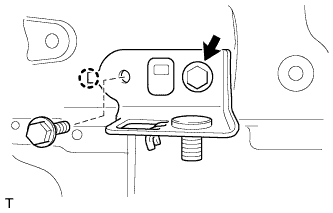

    A00OI13

    1. Remove the 2 bolts and anchor bracket.

      Tech Tips

      The bolt indicated by the arrow in the illustration cannot be removed from the bracket.
