REAR SEAT OUTER BELT ASSEMBLY (for Sedan) INSTALLATION

Tech Tips

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.

INSTALL OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY LH
1. Align the claw with the anchor bracket positioning hole.
2. Install the anchor bracket with the bolt.

  Torque:

  41 N*m { 418 kgf*cm, 30 ft.*lbf }
INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
1. Align the claw with the 3 point type belt positioning hole and install the retractor of the 3 point type belt with the nut.

  Torque:

  41 N*m { 418 kgf*cm, 30 ft.*lbf }
INSTALL NO. 3 PACKAGE TRAY TRIM PAD

Tech Tips

Perform the following procedure if replacing the No. 3 package tray trim pad.
1. Text in Illustration

  *1 Mark

  Install 2 new No. 3 package tray trim pads using double-sided tape as shown in the illustration.
INSTALL NO. 2 PACKAGE TRAY TRIM PAD

Tech Tips

Perform the following procedure if replacing the No. 2 package tray trim pad.

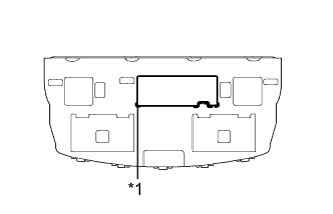

1. Text in Illustration

  *1 Mark

  Install a new No. 2 package tray trim pad using double-sided tape as shown in the illustration.
INSTALL NO. 1 PACKAGE TRAY TRIM PAD

Tech Tips

Perform the following procedure if replacing the No. 1 package tray trim pad.

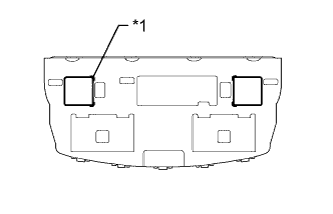

1. Text in Illustration

  *1 Mark

  Install 2 new No. 1 package tray trim pads using double-sided tape as shown in the illustration.
INSTALL NO. 1 ROOM PARTITION BOARD
1. Attach the 4 clips to install the partition board.
2. Install the 4 clips.
INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
1. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.
2. Attach the 5 claws and 2 clips to install the package tray trim panel assembly.
3. Install the 4 clips.
4. Connect the connector.
INSTALL REAR SEAT SHOULDER BELT HOLE COVER
1. Attach the 4 claws to install the belt hole cover.

  Tech Tips

  Use the same procedure to install all the belt hole covers.
INSTALL INNER ROOF SIDE GARNISH LH
Text in Illustration

*1 Clip A
1. Install 2 new clips labeled A to the inner roof side garnish.
2. Attach the 5 clips to install the inner roof side garnish.
INSTALL INNER ROOF SIDE GARNISH RH

Tech Tips

Use the same procedure described for the LH side.
CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
Text in Illustration

*1 Protruding Part
1. Connect the center seat outer belt anchor with the bolt.

  Torque:

  41 N*m { 418 kgf*cm, 30 ft.*lbf }

  Note

  Do not allow the anchor part of the seat belt to overlap the protruding parts of the inner belt.
INSTALL REAR SIDE SEATBACK ASSEMBLY LH
1. Install the claw as shown in the illustration.

  Torque:

  7.8 N*m { 80 kgf*cm, 69 in.*lbf }
2. Text in Illustration

  *1 Protruding Part

  Install the side seatback with the bolt.

  Torque:

  41 N*m { 418 kgf*cm, 30 ft.*lbf }

  Note

  Do not allow the anchor part of the rear seat 3 point type belt to overlap the protruding parts of the floor panel.
3. Install the seat belt to the belt guide.
4. Attach the claw to close the cap of the rear seat shoulder belt guide.
5. Check if the ELR locks.

  Note

  The check should be performed with the outer belt assembly installed.
  1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.
INSTALL REAR SIDE SEATBACK ASSEMBLY RH

Tech Tips

Use the same procedure described for the LH side.
INSTALL REAR BENCH TYPE SEAT CUSHION ASSEMBLY
1. Attach the 2 rear hooks of the seat cushion to the seatback.
2. Attach the 2 front hooks to install the seat cushion.
3. Confirm that the seat cushion is firmly installed.

  Note

  When installing the seat cushion, make sure the seat belt buckle is not under the seat cushion.
