MONOLITHIC CONVERTER (for CCo) INSTALLATION


  1. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY


    1. Install a new gasket to the turbocharger.

      Tech Tips

      Make sure that the part labeled A is facing downwards as shown in the illustration.

      A00EAQME01
    2. A00E8FT

      Temporarily install the exhaust manifold converter with the 3 nuts.

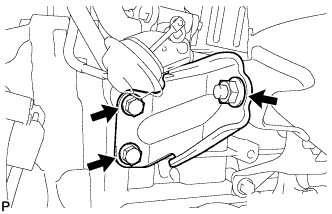

    3. A00E9Y0

      Temporarily install the No. 2 exhaust manifold stay with the 2 bolts and nut.

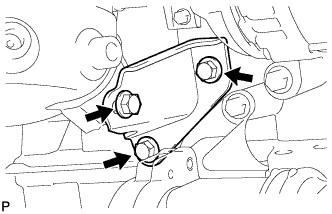

    4. A00E7N2

      Temporarily install the No. 2 manifold stay with the 3 bolts.

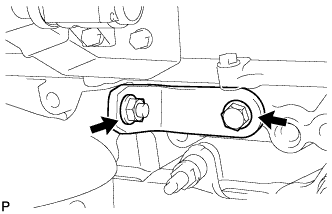

    5. A00E6L5

      Temporarily install the manifold stay with the bolt and nut.

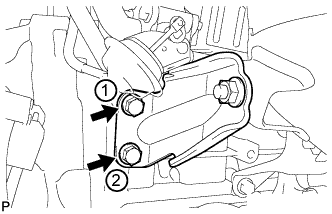

    6. A00E7UME01

      Tighten the 2 bolts of the No. 2 exhaust manifold stay in the order shown in the illustration.

      Torque:
      56 N*m  { 571 kgf*cm, 41 ft.*lbf }
    7. A00E8FT

      Tighten the 3 nuts of the exhaust manifold converter.

      Torque:
      25 N*m  { 255 kgf*cm, 18 ft.*lbf }

      Note

      Tighten the nuts while pressing the exhaust manifold converter against the engine.

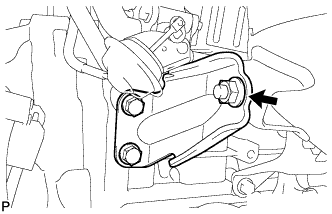

    8. A00E6UM

      Tighten the nut of the No. 2 exhaust manifold stay.

      Torque:
      56 N*m  { 571 kgf*cm, 41 ft.*lbf }

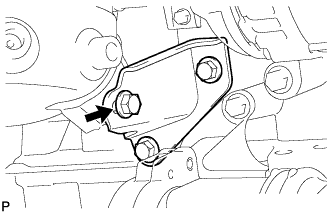

    9. A00E8F0

      Tighten the bolt of the No. 2 manifold stay shown in the illustration.

      Torque:
      56 N*m  { 571 kgf*cm, 41 ft.*lbf }

      Note

      Tighten the bolt while pressing the No. 2 manifold stay against the exhaust manifold converter and cylinder block.

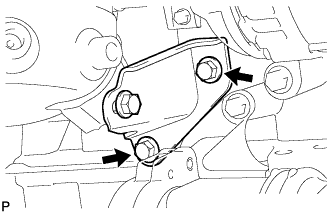

    10. A00E9IL

      Tighten the 2 bolts of the No. 2 manifold stay shown in the illustration.

      Torque:
      56 N*m  { 571 kgf*cm, 41 ft.*lbf }
    11. A00EB3I

      Tighten the bolt of the manifold stay.

      Torque:
      25 N*m  { 255 kgf*cm, 18 ft.*lbf }

      Note

      Tighten the bolt while pressing the manifold stay against the exhaust manifold converter and cylinder block.

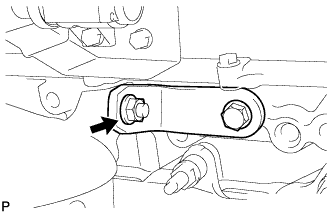

    12. A00E7ZZ

      Tighten the nut of the manifold stay.

      Torque:
      25 N*m  { 255 kgf*cm, 18 ft.*lbf }

  2. INSTALL NO. 1 MANIFOLD CONVERTER INSULATOR

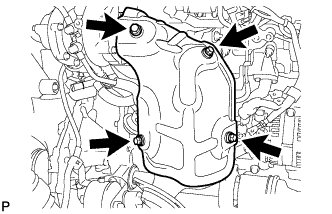

    1. A00E7ZC

      Install the No. 1 manifold converter insulator with the 4 bolts.

      Torque:
      29 N*m  { 291 kgf*cm, 21 ft.*lbf }

  3. INSTALL ENGINE ASSEMBLY


    1. Install the engine assembly Click here.
