LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH REMOVAL

PROCEDURE


  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Click here

  2. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

    Click here

  3. REMOVE LUGGAGE ELECTRICAL KEY SWITCH (w/o Rear Monitor)

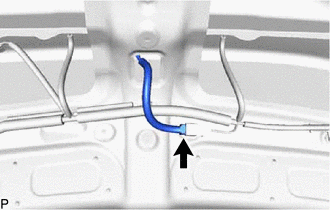

    1. B0077FP

      Disconnect the connector.

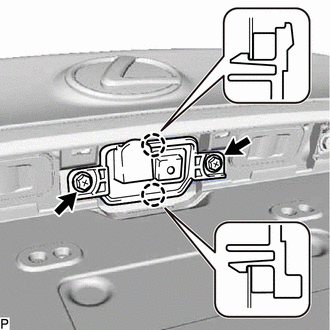

    2. B00755A

      Remove the 2 screws.

    3. Disengage the 2 claws to remove the luggage electrical key switch.

  4. REMOVE LUGGAGE ELECTRICAL KEY SWITCH WITH REAR TELEVISION CAMERA ASSEMBLY (w/ Rear Monitor)


    1. B0077FP

      Disconnect the connector.

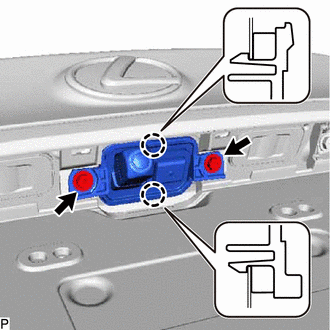

    2. B0076W7

      Remove the 2 screws.

    3. Disengage the 2 claws to remove the luggage electrical key switch with rear television camera assembly.

  5. REMOVE LUGGAGE ELECTRICAL KEY SWITCH (w/ Rear Monitor)


    1. B0073ZL

      Disconnect the connector.

    2. B00767K

      Remove the 2 screws and rear television camera assembly from the luggage electrical key switch.
