CAUTION / NOTICE / HINT
Note
Make sure to use Toyota Genuine Windshield Glass Adhesive (High Modulus Type) or equivalent.
PROCEDURE
INSTALL NO. 1 BACK WINDOW GLASS STOPPER (for 2-piece Type)
Install 2 new No. 1 back window glass stoppers to the vehicle body as shown in the illustration.
Tech Tips
Only 2-piece type back window glass stoppers are provided as supply parts. Use 2-piece type stoppers as replacements even if 1-piece type stoppers were originally installed.
INSTALL NO. 2 BACK WINDOW GLASS STOPPER (for 2-piece Type)
Using a brush or sponge, coat the installation area of 2 new No. 2 back window glass stoppers with primer G.
Note
Do not apply too much primer G.
Allow the primer G to dry for 3 minutes or more.
Throw away any leftover primer G.
Tech Tips
If an area other than specified is coated by accident, wipe off the primer G with a clean piece of cloth before it dries.
| *A | Back Side |
| *a | Ceramic Notch |
| *b | Back Window Glass Edge Side |

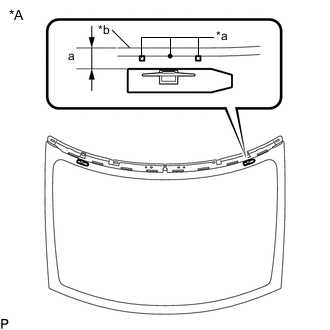

Install the 2 new No. 2 back window glass stoppers to the back window glass as shown in the illustration.
| Standard Dimension | ||||
|---|---|---|---|---|
|
Tech Tips
Only 2-piece type back window glass stoppers are provided as supply parts. Use 2-piece type stoppers as replacements even if 1-piece type stoppers were originally installed.
INSTALL BACK WINDOW OUTSIDE MOULDING
Using a brush or sponge, coat the installation area of a new back window outside moulding with primer G.
Note
Do not apply too much primer G.
Allow the primer G to dry for 3 minutes or more.
Throw away any leftover primer G.
Tech Tips
If an area other than specified is coated by accident, wipe off the primer G with a clean piece of cloth before it dries.

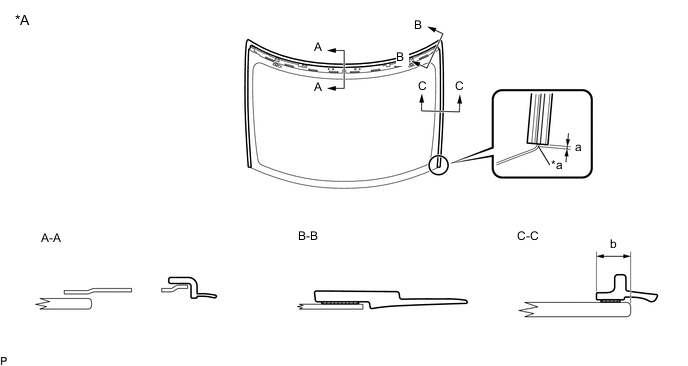

Install the new back window outside moulding to the back window glass as shown in the illustration.
| *A | Back Side | - | - |
| *a | Edge Of Curved Surface | - | - |
| Standard Dimension | ||||||
|---|---|---|---|---|---|---|
|
INSTALL BACK WINDOW GLASS ADHESIVE DAM
for Lower Side:
| *a | Cut |

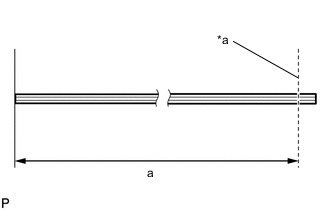

Cut a new back window glass adhesive dam so that it is the appropriate size as shown in the illustration.
| Standard Dimension | ||||
|---|---|---|---|---|
|
Using a brush or sponge, coat the installation area of 9 new back window glass adhesive dams with primer G.
Note
Do not apply too much primer G.
Allow the primer G to dry for 3 minutes or more.
Throw away any leftover primer G.
Tech Tips
If an area other than specified is coated by accident, wipe off the primer G with a clean piece of cloth before it dries.

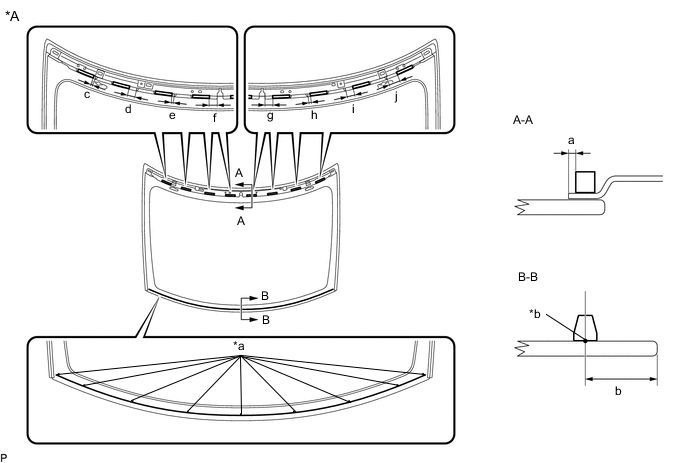

Install the 9 back window glass adhesive dams to the back window glass as shown in the illustration.
| *A | Back Side | - | - |
| *a | Back window glass adhesive dam positioning ceramic notch | *b | Back window glass adhesive dam positioning center line |
| Standard Dimension | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
INSTALL BACK WINDOW GLASS SUB-ASSEMBLY
| *a | Matchmark |
Position the back window glass sub-assembly.
Using suction cups, place the back window glass sub-assembly in the correct position.
Check that the whole contact surface of the back window glass sub-assembly rim is perfectly even.
Align the matchmarks on the back window glass sub-assembly and vehicle body.
Note
Check that the back window glass stoppers are engaged to the vehicle body correctly.
Remove the back window glass sub-assembly.
Using a brush, coat the installation surface on the vehicle body with primer M.
Note
Do not coat the adhesive with primer M.
Do not apply too much primer M.
Allow the primer M to dry for 3 minutes or more.
Throw away any leftover primer M.
Tech Tips
If an area other than specified is coated by accident, wipe off the primer M with a clean piece of cloth before it dries.

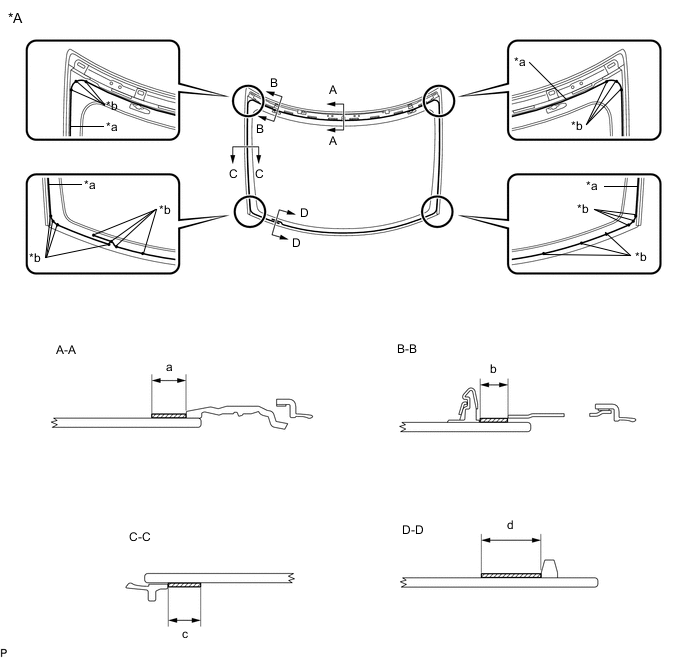

Using a brush or sponge, coat the adhesive application area with primer G.
| *A | Back Side | - | - |
| *a | Adhesive center position | *b | Ceramic Notch |
|
Primer G | - | - |
| Standard Dimension | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Note
Do not apply too much primer G.
Allow the primer G to dry for 3 minutes or more.
Throw away any leftover primer G.
Tech Tips
Apply primer G onto the ceramic notches.
If an area other than specified is coated by accident, wipe off the primer G with a clean piece of cloth before it dries.
Apply adhesive to the back window glass sub-assembly.
| Adhesive |
|---|
| Toyota Genuine Windshield Glass Adhesive (High modulus Type) or Equivalent |
| *a | Nozzle |
Cut off the tip of the cartridge nozzle as shown in the illustration.
| Standard Dimension | ||||||
|---|---|---|---|---|---|---|
|
Load the sealer gun with the cartridge.

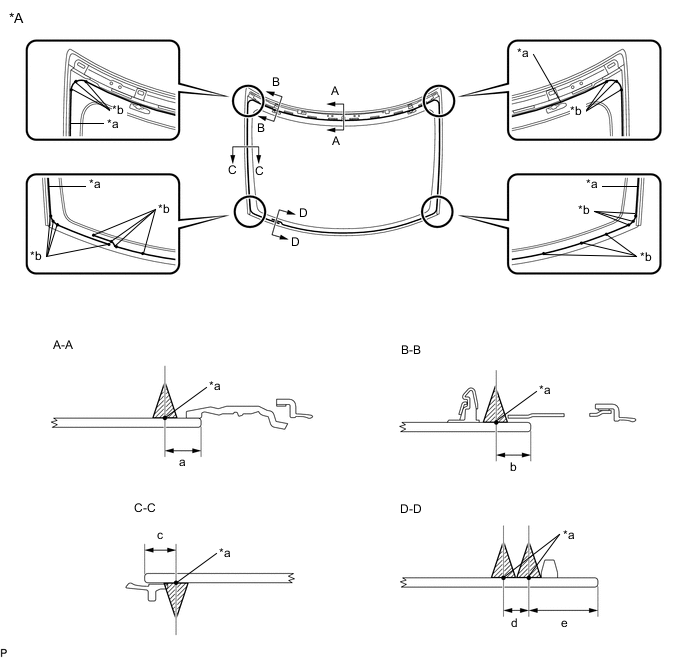

Apply adhesive to the back window glass sub-assembly as shown in the illustration.
| *A | Back Side | - | - |
| *a | Adhesive center position | *b | Ceramic Notch |
|
Adhesive | - | - |
| Standard Dimension | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Tech Tips
Apply adhesive onto the ceramic notches.
Install the back window glass sub-assembly.
| *a | Matchmark |
Using suction cups, position the back window glass sub-assembly so that the matchmarks are aligned, and press it in gently along the rim.
Note
Check that the back window glass stoppers are engaged to the vehicle body correctly.
Check the clearance between the vehicle body and back window glass sub-assembly.
Lightly press the outer surface of the back window glass sub-assembly to ensure that the back window glass is securely fit to the vehicle body.
Tech Tips
Press the glass with a force of 98 N (10 kgf, 22.0 lbf) or more.
Using a scraper, remove any excess or protruding adhesive.
Hold the back window glass sub-assembly using protective tape until the applied adhesive becomes hard.
Note
Do not drive the vehicle for the time described in the table below.
| Minimum Time | ||||||||
|---|---|---|---|---|---|---|---|---|
|
Connect each connector.
INSPECT FOR LEAK
After the adhesive has hardened, apply water from the outside of the vehicle. Check that no water leaks into the cabin.
If water leaks into the cabin, allow the water to dry and add adhesive.
Remove the protective tape.
INSTALL CENTER STOP LIGHT ASSEMBLY
INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
INSTALL NO. 3 ROOM PARTITION COVER
INSTALL NO. 2 ROOM PARTITION COVER
INSTALL NO. 1 ROOM PARTITION COVER
Tech Tips
Use the same procedure as for the No. 2 room partition cover.
INSTALL REAR SEAT SUB FLOOR PANEL
INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM COVER
INSTALL ROOF HEADLINING ASSEMBLY
