BACK WINDOW GLASS REMOVAL

PROCEDURE


  1. REMOVE ROOF HEADLINING ASSEMBLY

    Click here

  2. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER

    Click here

  3. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Click here

  4. REMOVE REAR SEAT SUB FLOOR PANEL

    Click here

  5. REMOVE NO. 2 ROOM PARTITION COVER

    Click here

  6. REMOVE NO. 1 ROOM PARTITION COVER

    Tech Tips

    Use the same procedure as for the No. 2 room partition cover.

  7. REMOVE NO. 3 ROOM PARTITION COVER

    Click here

  8. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Click here

  9. REMOVE CENTER STOP LIGHT ASSEMBLY

    Click here

  10. REMOVE BACK WINDOW GLASS SUB-ASSEMBLY


    1. Disconnect each connector.

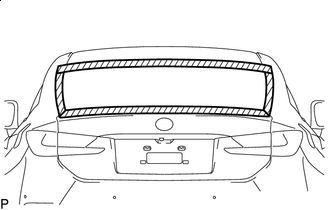

    2. B00747OC01
      B0076EM Protective Tape

      Apply protective tape to the area around the installation position of the back window glass sub-assembly on the vehicle body to prevent it from being scratched.

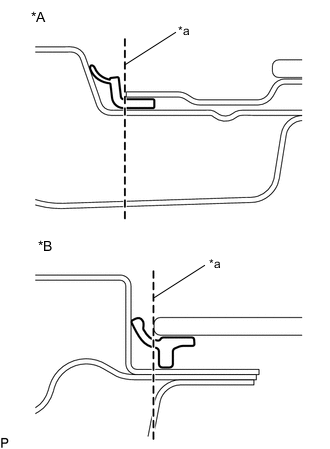

    3. B00766DC01
      *A Upper
      *B Side
      *a Cut Off

      Using a knife, cut off the back window outside moulding as shown in the illustration.

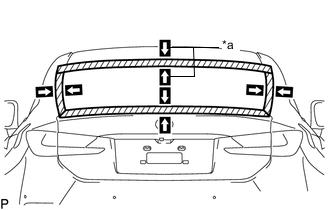

    4. B0075NHC01
      *a Matchmark

      Place matchmarks on the back window glass sub-assembly and vehicle body at the locations indicated in the illustration.

      Tech Tips

      Matchmarks are not necessary if the back window glass sub-assembly is not going to be reused.

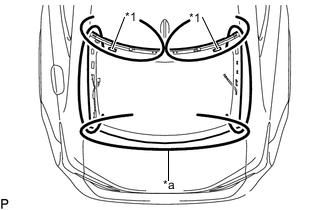

    5. B0074MLC01
      *1 Back Window Glass Stopper
      *a Piano Wire

      Pass a piano wire between the vehicle body and back window glass sub-assembly from the interior.

      Note

      Do not pull the piano wire in a vertical direction, but pull it in a horizontal direction.

    6. Tie both wire ends to wooden blocks or similar objects that can serve as handles.

    7. Cut off the adhesive by pulling the piano wire around the back window glass sub-assembly.

      Note


      • When separating the back window glass sub-assembly, be careful not to damage the paint or interior and exterior ornaments.

      • When cutting off the adhesive, take care not to damage the connectors on the back window glass sub-assembly.

    8. Disengage the back window glass stoppers.

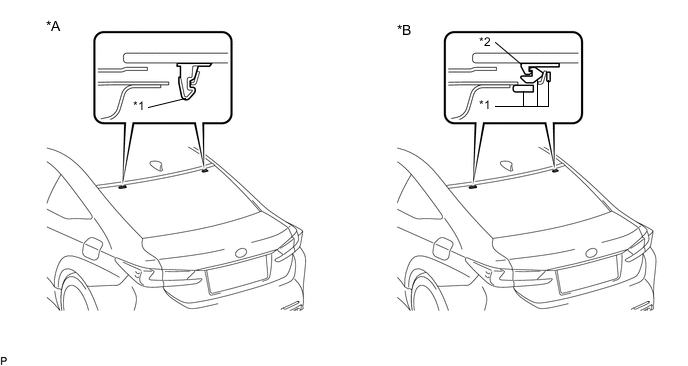

      B0075H3C01
      *A for 1-piece Type *B for 2-piece Type
      *1 No. 1 Back Window Glass Stopper *2 No. 2 Back Window Glass Stopper

      Note


      • The No. 1 back window glass stoppers and No. 2 back window glass stoppers are installed to the back window glass sub-assembly as shown in the illustration. Be careful not to damage the back window glass sub-assembly when cutting off the adhesive.

      • To prevent the back window glass sub-assembly from falling when performing this operation, be sure to hold the back window glass sub-assembly using suction cups.

      Tech Tips

      Depending on the vehicle, either 1-piece type or 2-piece type stoppers may be present.

    9. Using suction cups, remove the back window glass sub-assembly.

      Note


      • Be careful not to drop the back window glass sub-assembly.

      • Leave as much adhesive on the vehicle body as possible when removing the back window glass sub-assembly.

  11. REMOVE BACK WINDOW GLASS ADHESIVE DAM


    1. When reusing the back window glass:

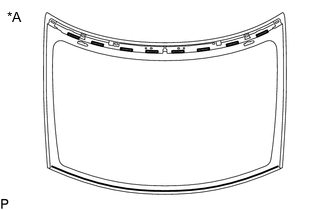

      1. B0075NEC01
        *A Back Side

        Using a scraper, remove the 9 back window glass adhesive dams from the back side of the back window glass.

        Note


        • Be careful not to damage the back window glass.

        • Be sure to replace the back window glass adhesive dams with new ones.

  12. REMOVE BACK WINDOW OUTSIDE MOULDING


    1. When reusing the back window glass:

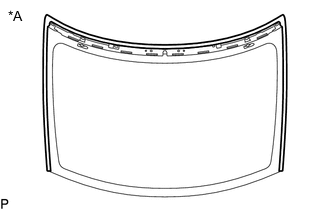

      1. B00731NC01
        *A Back Side

        Using a scraper, remove the back window outside moulding from the back side of the back window glass.

        Note


        • Be careful not to damage the back window glass.

        • Be sure to replace the back window outside moulding with a new one.

  13. REMOVE NO. 1 BACK WINDOW GLASS STOPPER (for 1-piece Type)


    1. When reusing the back window glass:

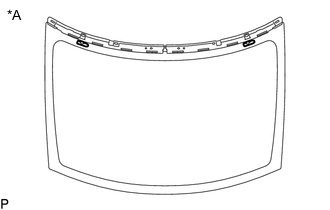

      1. B0074V4C01
        *A Back Side

        Using a scraper, remove the 2 No. 1 back window glass stoppers from the back side of the back window glass.

        Note


        • Be careful not to damage the back window glass.

        • Be sure to replace the 1-piece type No. 1 back window glass stoppers with new 2-piece type No. 1 and No. 2 back window glass stoppers.

  14. REMOVE NO. 2 BACK WINDOW GLASS STOPPER (for 2-piece Type)


    1. When reusing the back window glass:


      1. B0074V4C02
        *A Back Side

        Using a scraper, remove the 2 No. 2 back window glass stoppers from the back side of the back window glass.

        Note


        • Be careful not to damage the back window glass.

        • Be sure to replace the No. 2 back window glass stoppers with new ones.

  15. REMOVE NO. 1 BACK WINDOW GLASS STOPPER (for 2-piece Type)

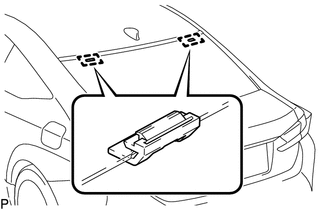

    1. B0073CM

      Remove the 2 No. 1 back window glass stoppers.

      Note

      Be sure to replace the No. 1 back window glass stoppers with new ones.

  16. CLEAN BACK WINDOW GLASS


    1. When reusing the back window glass:


      1. B0077VY

        Using a scraper, remove any remaining adhesive dam and adhesive residue from the back window glass.

        Note

        Be careful not to damage the back window glass.

      2. Clean the outer circumference of the back window glass with a non-residue solvent.

        Note


        • Do not touch the back window glass surface after cleaning it.

        • Even if using a new back window glass, clean the back window glass with a non-residue solvent.

  17. CLEAN VEHICLE BODY


    1. Clean and shape the contact surface of the vehicle body.

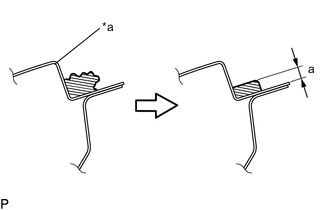

      1. B0077U2C01
        *a Vehicle Body
        B0076EM Adhesive

        Using a knife, cut away excess adhesive on the contact surface of the vehicle body as shown in the illustration.

        Standard Dimension
        Area Dimension
        a 1.0 mm (0.0394 in.) or more

        Note

        Be careful not to damage the vehicle body.

        Tech Tips

        Leave approximately 1.0 mm (0.0394 in.) of adhesive on the vehicle body.

      2. Clean the contact surface of the vehicle body with a piece of cloth saturated with non-residue solvent.

        Tech Tips

        Even if all of the adhesive has been removed, clean the vehicle body.
