BACK WINDOW GLASS COMPONENTS

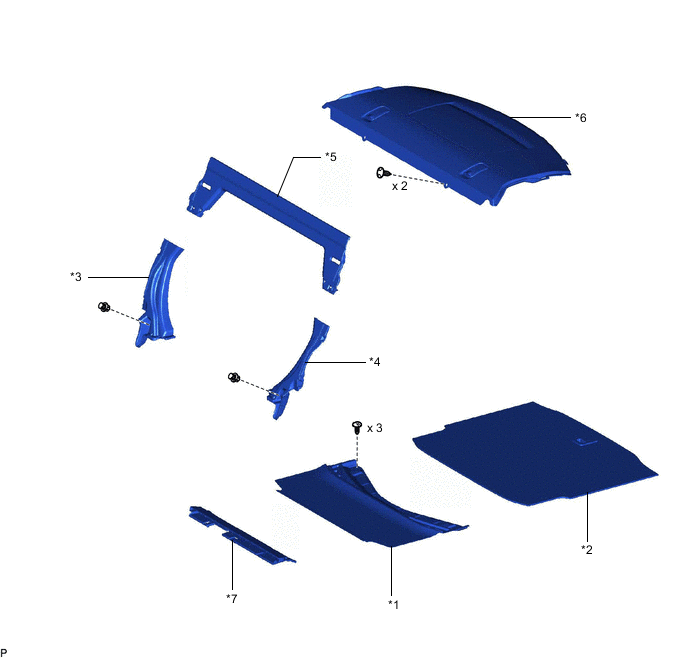

ILLUSTRATION
| *1 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *2 | NO. 1 LUGGAGE COMPARTMENT TRIM COVER |
| *3 | NO. 1 ROOM PARTITION COVER | *4 | NO. 2 ROOM PARTITION COVER |
| *5 | NO. 3 ROOM PARTITION COVER | *6 | PACKAGE TRAY TRIM PANEL ASSEMBLY |
| *7 | REAR SEAT SUB FLOOR PANEL | - | - |

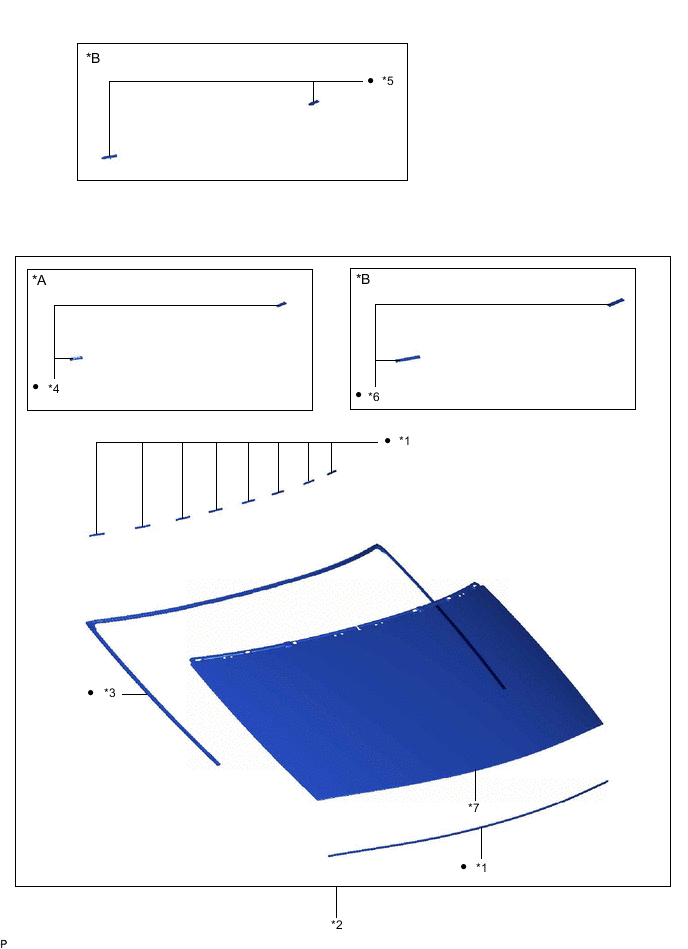

ILLUSTRATION
| *A | for 1-piece Type | *B | for 2-piece Type |
| *1 | BACK WINDOW GLASS ADHESIVE DAM | *2 | BACK WINDOW GLASS SUB-ASSEMBLY |
| *3 | BACK WINDOW OUTSIDE MOULDING | *4 | NO. 1 BACK WINDOW GLASS STOPPER |
| *5 | NO. 1 BACK WINDOW GLASS STOPPER | *6 | NO. 2 BACK WINDOW GLASS STOPPER |
| *7 | BACK WINDOW GLASS | - | - |
| ● | Non-reusable part | - | - |
