COMPRESSOR INSPECTION

PROCEDURE


  1. INSPECT COOLER COMPRESSOR ASSEMBLY (A/C LOCK SENSOR)

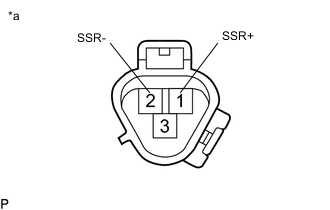

    1. A01F9AOC04
      *a

      Component without harness connected

      (Cooler Compressor Assembly (A/C Lock Sensor))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 (SSR+) - 2 (SSR-) 20°C (68°F) 160 to 320 Ω

      If the resistance is not as specified, replace the cooler compressor assembly.

  2. INSPECT COOLER COMPRESSOR ASSEMBLY (COMPRESSOR SOLENOID)

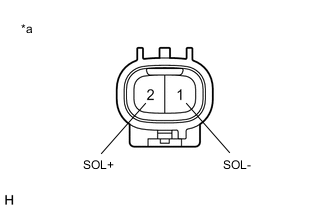

    1. B0073G4C14
      *a

      Component without harness connected

      (Cooler Compressor Assembly (Compressor Solenoid))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 (SOL-) - 2 (SOL+) 25°C (77°F) 10.1 to 11.1 Ω

      If the resistance is not as specified, replace the cooler compressor assembly.

  3. INSPECT COOLER COMPRESSOR ASSEMBLY (MAGNETIC CLUTCH ASSEMBLY)

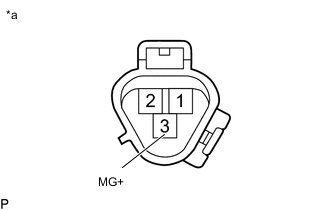

    A01F9AOC05
    *a

    Component without harness connected

    (Cooler Compressor Assembly (Magnetic Clutch Assembly))

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      3 (MG+) - Body ground 20°C (68°F) 3.8 to 4.2 Ω

      If the resistance is not as specified, replace the magnetic clutch assembly.

    2. When connector terminal 3 (MG+) is connected to a positive (+) battery terminal, check that the following occurs: 1) the magnetic clutch operating sound can be heard, and 2) the magnetic clutch hub and rotor lock.


      • If the result is not as specified, replace the magnetic clutch assembly.
