COMPRESSOR COMPONENTS

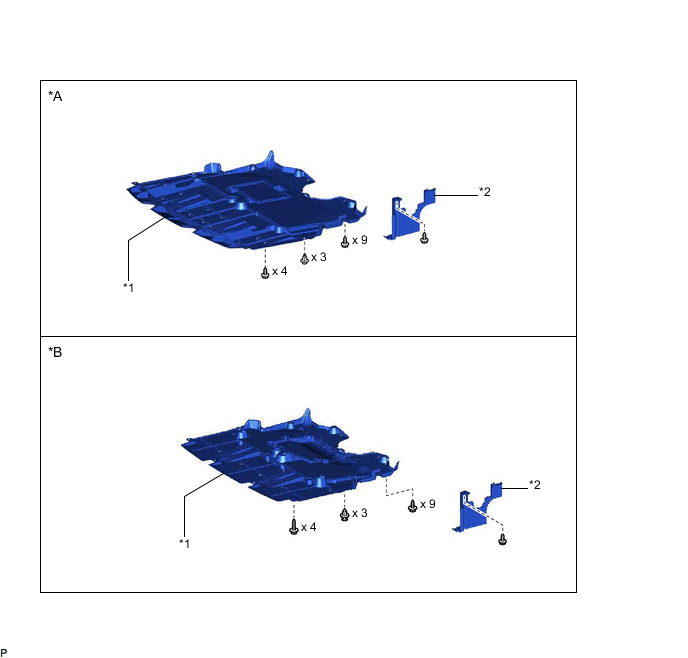

ILLUSTRATION
| *A | for 2GR-FKS | *B | for 8AR-FTS |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | REAR ENGINE UNDER COVER LH |

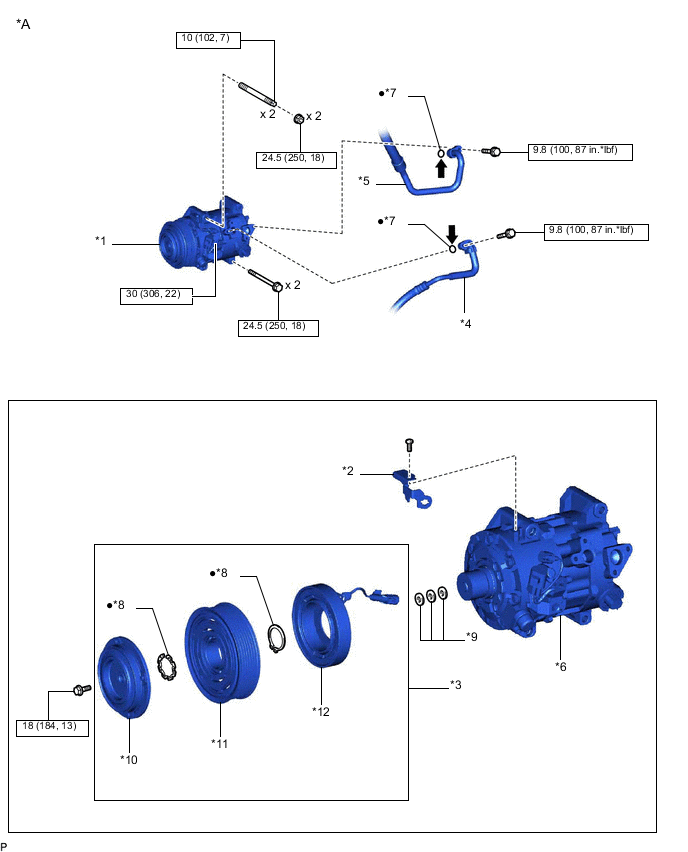

ILLUSTRATION
| *A | for 2GR-FKS | *B | for Type A |
| *C | for Type B | - | - |
| *1 | COMPRESSOR AND MAGNETIC CLUTCH | *2 | COOLER COMPRESSOR BRACKET |
| *3 | MAGNET CLUTCH ASSEMBLY | *4 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE |
| *5 | SUCTION HOSE | *6 | COMPRESSOR ASSEMBLY |
| *7 | O-RING | *8 | SNAP RING |
| *9 | MAGNET CLUTCH WASHER | *10 | MAGNET CLUTCH HUB |
| *11 | MAGNET CLUTCH ROTOR | *12 | MAGNET CLUTCH STATOR |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Compressor oil ND-OIL 8 or equivalent | - | - |

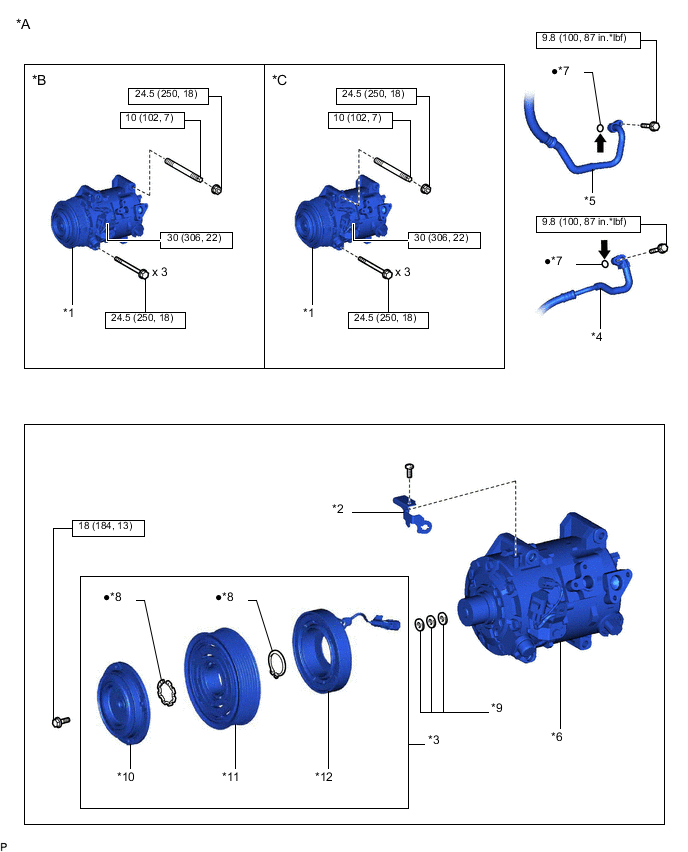

ILLUSTRATION
| *A | for 8AR-FTS | - | - |
| *1 | COMPRESSOR AND MAGNETIC CLUTCH | *2 | COOLER COMPRESSOR BRACKET |
| *3 | MAGNET CLUTCH ASSEMBLY | *4 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE |
| *5 | SUCTION HOSE | *6 | COMPRESSOR ASSEMBLY |
| *7 | O-RING | *8 | SNAP RING |
| *9 | MAGNET CLUTCH WASHER | *10 | MAGNET CLUTCH HUB |
| *11 | MAGNET CLUTCH ROTOR | *12 | MAGNET CLUTCH STATOR |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
for HFC-134a (R134a): Compressor oil ND-OIL 8 or equivalent for HFO-1234yf (R1234yf): Compressor oil ND-OIL 12 or equivalent |
- | - |
