COMBINATION METER REMOVAL

PROCEDURE


  1. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS (for Power Tilt and Power Telescopic Steering Column)

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click here

  5. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Click here

  6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Click here

  7. REMOVE METER HOOD SUB-ASSEMBLY

    Click here

  8. REMOVE COMBINATION METER ASSEMBLY

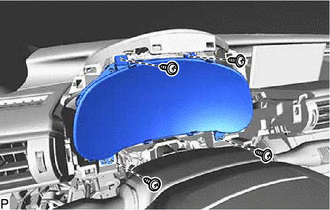

    1. B0073IF

      Remove the 4 screws.

    2. for Optitron Meter Type:

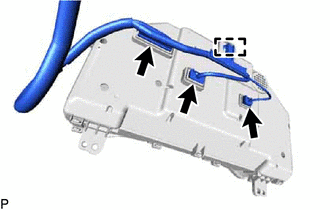

      1. B0074YO

        Disengage the clamp.

      2. Disconnect each connector to remove the combination meter assembly.

    3. for TFT Meter Type:

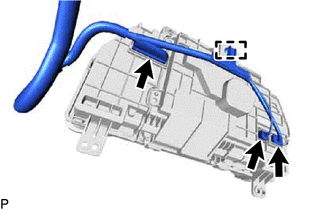

      1. B0075N4

        Disengage the clamp.

      2. Disconnect each connector to remove the combination meter assembly.
