COMBINATION METER DISASSEMBLY

PROCEDURE


  1. REMOVE COMBINATION METER GLASS (for Optitron Meter Type)


    1. A01F9QY

      Disengage the 8 claws to remove the combination meter glass.

  2. REMOVE COMBINATION METER GLASS (for TFT Meter Type)

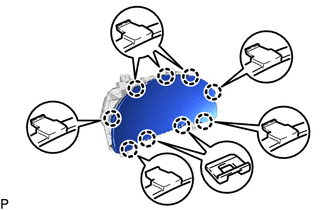

    1. A01FB6R

      Disengage the 9 claws to remove the combination meter glass.
