INNER REAR VIEW MIRROR INSTALLATION

PROCEDURE


  1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY

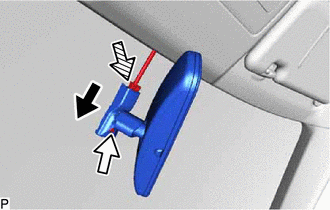

    1. B0073AV

      Using a T20 "TORX" socket wrench, install the inner rear view mirror assembly with the screw as shown in the illustration.

      Torque:
      1.75 N*m  { 18 kgf*cm, 15 in.*lbf }

    2. Connect the connector.

  2. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Lane Departure Alert System)


    1. Engage the 2 claws.

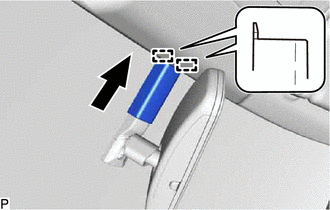

    2. B0073J6

      Slide the inner rear view mirror stay holder cover and engage the 2 guides to install the inner rear view mirror stay holder cover as shown in the illustration.

  3. INSTALL NO. 2 LANE RECOGNITION COVER (w/ Lane Departure Alert System)

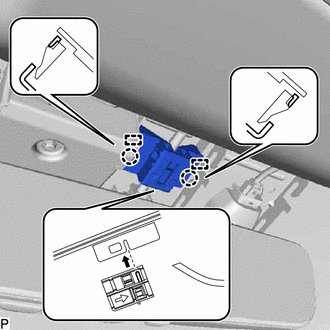

    1. A01F81W

      Engage the 2 claws and 2 guides to install the No. 2 lane recognition cover as shown in the illustration.

  4. INSTALL NO. 1 LANE RECOGNITION COVER (w/ Lane Departure Alert System)

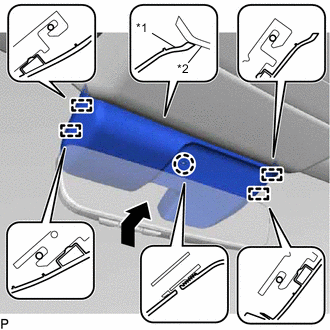

    1. A01FBBGC01
      *1 No. 1 Lane Recognition Cover
      *2 Roof Headlining Assembly

      Engage the claw and 4 guides to install the No. 1 lane recognition cover as shown in the illustration.

      Tech Tips

      Slide the No. 1 lane recognition cover until the space between the roof headlining assembly and it is lost.
