INNER REAR VIEW MIRROR INSTALLATION

PROCEDURE


  1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/o Pre-collision System)


    1. B0073AV

      Using a T20 "TORX" socket wrench, install the inner rear view mirror assembly with the screw as shown in the illustration.

    2. Connect the connector.

  2. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Pre-collision System)


    1. Engage the 2 claws.

    2. B0073J6

      Slide the inner rear view mirror stay holder cover and engage the 2 guides to install the inner rear view mirror stay holder cover as shown in the illustration.

  3. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ Pre-collision System)

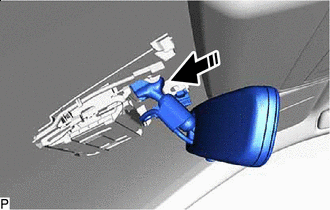

    1. B00769BC01
      B0077CY Install in this Direction

      Slide and temporarily install the inner rear view mirror assembly as shown in the illustration.

    2. Using a T20 "TORX" socket wrench, install the inner rear view mirror assembly with the screw.

    3. Engage the clamp.

    4. Connect the connector.

  4. INSTALL NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Click here

  5. INSTALL NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Click here
