ELECTRICAL KEY OSCILLATOR(for Rear Floor) REMOVAL

PROCEDURE

1. REMOVE REAR SEAT CUSHION ASSEMBLY

   Click here

2. REMOVE REAR SEAT CUSHION LOCK HOOK

   Click here

3. REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY




   1.

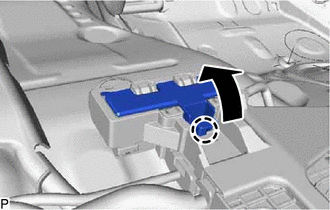

      Disengage the claw and open the cover as shown in the illustration.

   2.

      Disconnect the connector.

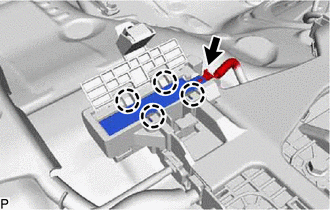

   3. Disengage the 4 claws and remove the No. 2 indoor electrical key antenna assembly.

      Note

      Be careful when removing the No. 2 indoor electrical key antenna assembly. If the No. 2 indoor electrical key antenna assembly is dropped, replace it with a new one.
