PARKING BRAKE PEDAL(for LHD) REMOVAL

PROCEDURE


  1. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

    Click here

  2. REMOVE FRONT SEAT ASSEMBLY LH

    Click here

  3. REMOVE YAWRATE SENSOR BRACKET

    Click here

  4. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Click here

  5. REMOVE ACCELERATOR PEDAL PAD

    Click here

  6. REMOVE ACCELERATOR PEDAL ASSEMBLY

    Click here

  7. REMOVE REAR NO. 2 AIR DUCT

    Click here

  8. REMOVE FRONT FLOOR SILENCER PAD LH

    Click here

  9. REMOVE REAR NO. 1 AIR DUCT

    Click here

  10. REMOVE NO. 3 DASH PANEL INSULATOR PAD


    1. B007818

      Disengage the 2 clips to remove the No. 3 dash panel insulator pad.

  11. REMOVE AIRBAG ECU ASSEMBLY

    Click here

  12. REMOVE FRONT FLOOR REAR UPPER SUB PANEL SUB-ASSEMBLY


    1. B0077QS

      Disengage the 6 clamps from the front floor rear upper sub panel sub-assembly.

    2. B0074CW

      Disengage the 2 guides to separate the front floor carpet assembly.

    3. Remove the 4 bolts.

    4. B0073J7

      Disengage the clamp and remove the front floor rear upper sub panel sub-assembly.

  13. LOOSEN NO. 1 WIRE ADJUSTING NUT


    1. Completely release the parking brake pedal.

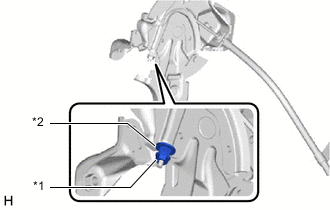

    2. B007676C01
      *1 Lock Nut
      *2 No. 1 Wire Adjusting Nut

      Loosen the lock nut and No. 1 wire adjusting nut to completely release the parking brake cable.

  14. REMOVE PARKING BRAKE RETURN WITH DAMPER SPRING


    1. B0076P8

      Using needle-nose pliers, remove the parking brake return with damper spring.

  15. REMOVE PARKING BRAKE EQUALIZER


    1. B0076YQC01
      *1 No. 2 Parking Brake Cable Assembly
      *2 No. 3 Parking Brake Cable Assembly

      Remove the 2 nuts and separate the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly from the parking brake equalizer.

    2. B0076NU

      Slide the rubber boot as shown in the illustration.

    3. B0077MPN01

      Remove the parking brake equalizer as shown in the illustration.

  16. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

    Click here

  17. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY

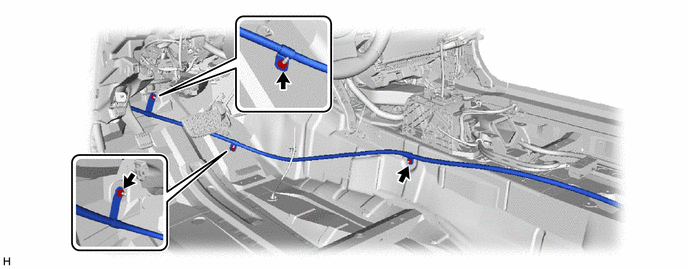

    1. Remove the 3 nuts and separate the No. 1 parking brake cable assembly from the body.

      B00760B

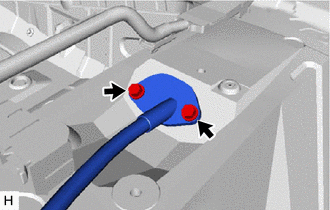

    2. B0076JO

      Remove the 2 bolts and separate the No. 1 parking brake cable assembly from the body.

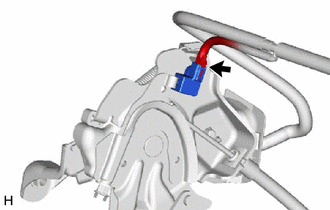

    3. B0077IN

      Disconnect the parking brake switch connector.

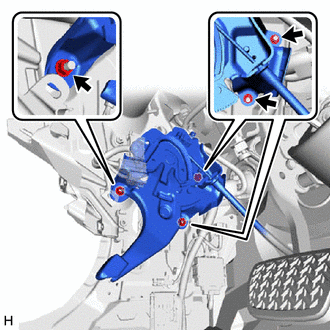

    4. B0077M0

      Remove the 3 nuts and parking brake control pedal assembly from the body.
