TIRE PRESSURE WARNING INITIATOR(for Rear Side) INSTALLATION

PROCEDURE

1. INSTALL REAR TIRE PRESSURE MONITOR INITIATOR




   1.

      *a

      Grommet

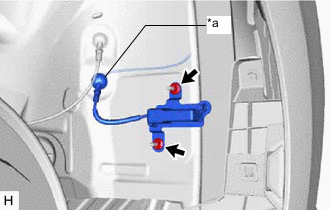

      Install the rear tire pressure monitor initiator with the 2 nuts.

      Torque:

      8.5 N*m  { 87 kgf*cm, 75 in.*lbf }

   2. Engage the grommet.

   3. Install the rear wheel house liner LH to its original position.

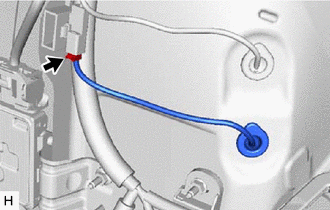

   4.

      Connect the connector.

2. INSTALL REAR WHEEL LH

   Click here

3. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH

   Click here

4. INSTALL ROPE HOOK ASSEMBLY (for LH Side)

   Click here

5. INSTALL FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

   Click here

6. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

   Click here

7. INSTALL NO. 2 ROOM PARTITION COVER

   Click here

8. INSTALL REAR SEAT SUB FLOOR PANEL

   Click here

9. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

   Click here

10. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER

    Click here

11. INSTALL SPARE WHEEL COVER TRAY

    Click here

12. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM COVER

    Click here

13. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH

    Click here

14. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Click here

15. INSTALL REAR SEAT ASSEMBLY

    Click here

16. INSPECT TIRE PRESSURE WARNING SYSTEM

    Click here
