REAR SUSPENSION MEMBER COMPONENTS
ILLUSTRATION
| *1 | TAIL EXHAUST PIPE ASSEMBLY | *2 | TAIL EXHAUST PIPE LH |
ILLUSTRATION
| *A | for Full Cover Type | *B | for Half Cover Type |
| *1 | FRONT CENTER FLOOR BRACE | *2 | FRONT CENTER FLOOR COVER LH |
| *3 | FRONT CENTER FLOOR COVER RH | *4 | REAR BODY MOUNTING CUSHION SUB-ASSEMBLY LH |
| *5 | REAR BODY MOUNTING CUSHION SUB-ASSEMBLY RH | *6 | REAR FLOOR SIDE MEMBER COVER LH |
| *7 | REAR FLOOR SIDE MEMBER COVER RH | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | *2 | REAR AXLE SHAFT NUT LH |
| *3 | REAR DISC | *4 | REAR DISC BRAKE CALIPER ASSEMBLY LH |
| *5 | REAR FLEXIBLE HOSE | *6 | REAR NO. 1 DISC BRAKE CALIPER PLATE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Do not apply lubricants to the threaded parts | - | - |
ILLUSTRATION
| *1 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | *2 | REAR AXLE SHAFT NUT RH |
| *3 | REAR DISC | *4 | REAR DISC BRAKE CALIPER ASSEMBLY RH |
| *5 | REAR FLEXIBLE HOSE | *6 | REAR NO. 1 DISC BRAKE CALIPER PLATE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Do not apply lubricants to the threaded parts | - | - |

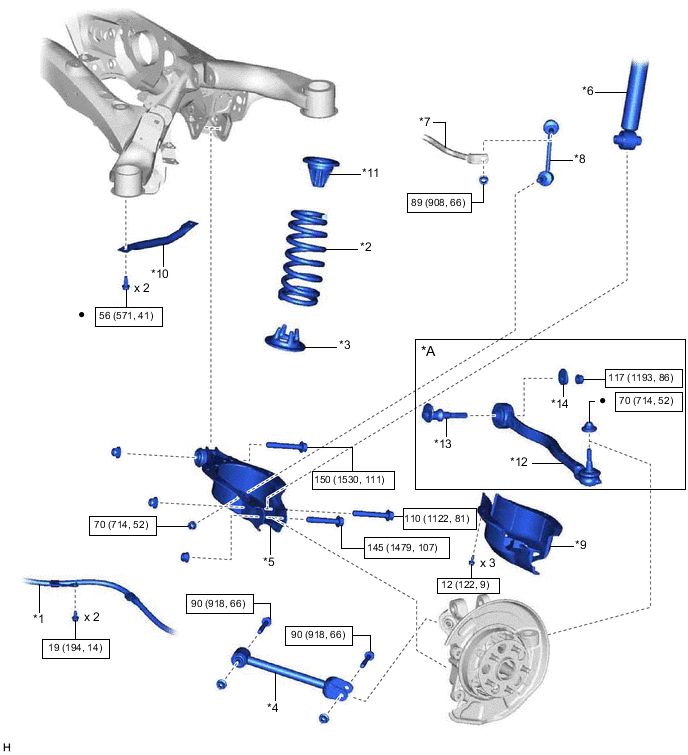

ILLUSTRATION
| *A | w/o Dynamic Rear Steering | - | - |
| *1 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | *2 | REAR COIL SPRING LH |
| *3 | REAR LOWER COIL SPRING INSULATOR | *4 | REAR NO. 1 SUSPENSION ARM ASSEMBLY LH |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | *6 | REAR SHOCK ABSORBER ASSEMBLY LH |
| *7 | REAR STABILIZER BAR | *8 | REAR STABILIZER LINK ASSEMBLY LH |
| *9 | REAR SUSPENSION ARM COVER LH | *10 | REAR SUSPENSION MEMBER BRACE LH |
| *11 | REAR UPPER COIL SPRING INSULATOR | *12 | TOE CONTROL LINK SUB-ASSEMBLY LH |
| *13 | TOE ADJUST CAM SUB-ASSEMBLY | *14 | NO. 2 TOE ADJUST PLATE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *A | w/o Dynamic Rear Steering | - | - |
| *1 | NO. 2 PARKING BRAKE CABLE ASSEMBLY | *2 | REAR COIL SPRING RH |
| *3 | REAR LOWER COIL SPRING INSULATOR | *4 | REAR NO. 1 SUSPENSION ARM ASSEMBLY RH |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH | *6 | REAR SHOCK ABSORBER ASSEMBLY RH |
| *7 | REAR STABILIZER BAR | *8 | REAR STABILIZER LINK ASSEMBLY RH |
| *9 | REAR SUSPENSION ARM COVER RH | *10 | REAR SUSPENSION MEMBER BRACE RH |
| *11 | REAR UPPER COIL SPRING INSULATOR | *12 | TOE CONTROL LINK SUB-ASSEMBLY RH |
| *13 | TOE ADJUST CAM SUB-ASSEMBLY | *14 | NO. 2 TOE ADJUST PLATE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | REAR AXLE ASSEMBLY LH | *2 | REAR DRIVE SHAFT ASSEMBLY LH |
| *3 | REAR NO. 1 UPPER CONTROL ARM ASSEMBLY | *4 | REAR SPEED SENSOR LH |
| *5 | REAR UPPER CONTROL ARM ASSEMBLY LH | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | |
Do not apply lubricants to the threaded parts |
ILLUSTRATION
| *1 | REAR AXLE ASSEMBLY RH | *2 | REAR DRIVE SHAFT ASSEMBLY RH |
| *3 | REAR NO. 1 UPPER CONTROL ARM ASSEMBLY | *4 | REAR SPEED SENSOR RH |
| *5 | REAR UPPER CONTROL ARM ASSEMBLY RH | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | |
Do not apply lubricants to the threaded parts |
ILLUSTRATION
| *A | for 8AR-FTS | - | - |
| *1 | REAR STABILIZER BAR SUB-ASSEMBLY | *2 | REAR SUSPENSION MEMBER DAMPER |
| *3 | REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION | *4 | REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION |
| *5 | REAR SUSPENSION MEMBER REAR LOWER STOPPER | *6 | REAR SUSPENSION MEMBER REAR UPPER STOPPER |
| *7 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *8 | REAR SUSPENSION MEMBER LOWER STOPPER SUB-ASSEMBLY RH |
| *9 | REAR SUSPENSION MEMBER LOWER STOPPER SUB-ASSEMBLY LH | *10 | REAR SUSPENSION MEMBER LOWER STOPPER |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
