REAR LOWER ARM REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. REMOVE REAR WHEEL

    Click here

  2. REMOVE REAR SUSPENSION ARM COVER


    1. B0073YG

      Remove the 3 bolts and rear suspension arm cover from the rear No. 2 suspension arm assembly.

  3. SEPARATE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY

    Click here

  4. REMOVE TOE CONTROL LINK SUB-ASSEMBLY (w/o Dynamic Rear Steering)

    Click here

  5. SEPARATE REAR STEERING TIE ROD ASSEMBLY (w/ Dynamic Rear Steering)

    Click here

  6. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY


    1. B0075B7

      Remove the bolt and nut, and separate the rear No. 1 suspension arm assembly from the rear axle assembly.

      Note

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

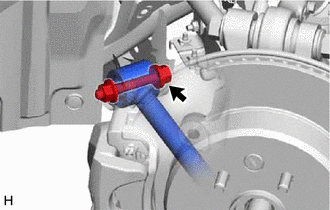

    2. B0077R8

      Remove the bolt and nut, and remove the rear No. 1 suspension arm assembly from the rear suspension member sub-assembly.

      Note

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  7. REMOVE REAR STABILIZER LINK ASSEMBLY

    Click here

  8. SEPARATE REAR SHOCK ABSORBER ASSEMBLY

    Click here

  9. REMOVE REAR COIL SPRING

    Click here

  10. REMOVE REAR UPPER COIL SPRING INSULATOR

    Click here

  11. REMOVE REAR LOWER COIL SPRING INSULATOR

    Click here

  12. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY

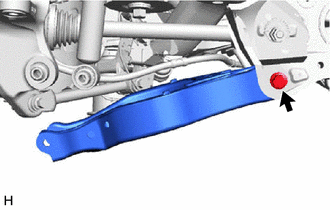

    1. B0073LK

      Remove the bolt, nut and rear No. 2 suspension arm assembly from the rear suspension member sub-assembly.

      Note

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
