REAR COIL SPRING INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL REAR LOWER COIL SPRING INSULATOR


    1. Install the rear lower coil spring insulator to the rear No. 2 suspension arm assembly.

  2. INSTALL REAR UPPER COIL SPRING INSULATOR


    1. Install the rear upper coil spring insulator to the rear coil spring.

  3. INSTALL REAR COIL SPRING

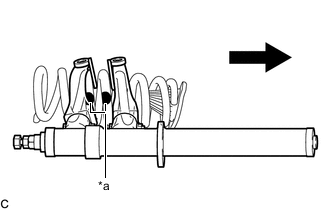

    1. B0073NEC02
      *a Identification Mark
      B0073AQ Upper Side

      Install SST to the rear coil spring with the identification marks on the rear coil spring positioned as shown in illustration.

      SST
      09727-30022   ( 09727-00010, 09727-00031 )
      09727-00120

      CAUTION:


      • Make sure that the arms of SST are parallel and attached to the coil spring, and the number of coil springs between the hooks on each side is the same.

      • Check that the claws of the hooks are securely attached to the coil spring.

    2. B0073D6C01
      *a Correct
      *b Incorrect
      *c Stopper plate

      Install the stopper plates to the hooks of SST.

      CAUTION:

      Make sure that the stopper plates are installed securely.

    3. Using SST, compress the rear coil spring.

      CAUTION:


      • If the coil spring bends while using SST, stop immediately and reattach SST correctly.

      • Do not compress the coil spring to the point where the coils touch each other.

      • Do not use an impact wrench.

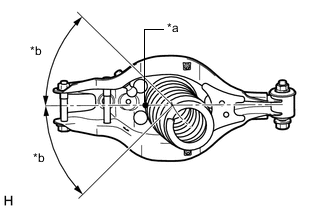

    4. B00756MC03
      *a Identification Mark
      *b 45° or less

      Temporarily install the rear coil spring with SST and rear upper coil spring insulator to the rear No. 2 suspension arm assembly.

      Note


      • Make sure to install the rear coil spring with the identification mark facing downward.

      • Install the rear coil spring so that the identification mark is positioned as shown in the illustration.

      • If SST contacts the vehicle body, adjust the installation position of SST so that it does not contact the vehicle body.

    5. Using a transmission jack and wooden block, slowly jack up the rear No. 2 suspension arm assembly and then temporarily install the rear No. 2 suspension arm assembly to the rear axle assembly with the bolt and nut.

      CAUTION:

      Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.

      Note


      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.

      • Make sure to perform this operation with the vehicle kept as low as possible.

      Tech Tips

      Insert the bolt with the threaded end facing the front of the vehicle.

    6. Remove SST from the rear coil spring.

      Note

      Do not use an impact wrench. It will damage SST.

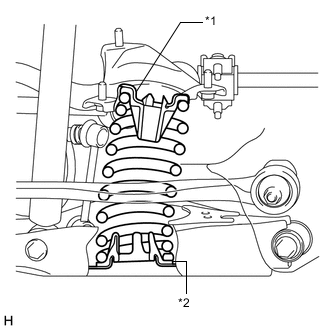

    7. B00753AC03
      *1 Rear Upper Coil Spring Insulator
      *2 Rear Lower Coil Spring Insulator

      Check that the rear upper coil spring insulator and rear lower coil spring insulator are installed as shown in the illustration.

  4. TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY


    1. Temporarily install the rear shock absorber assembly to the rear No. 2 suspension arm assembly with the bolt and nut.

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

      Tech Tips

      Insert the bolt with the threaded end facing the front of the vehicle.

  5. INSTALL REAR STABILIZER LINK ASSEMBLY

    Click here

  6. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY


    1. Temporarily install the rear No. 1 suspension arm assembly to the rear axle assembly with the bolt and nut.

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

      Tech Tips

      Insert the bolt with the threaded end facing the front of the vehicle.

  7. TEMPORARILY INSTALL TOE CONTROL LINK SUB-ASSEMBLY (w/o Dynamic Rear Steering)

    Click here

  8. INSTALL REAR STEERING TIE ROD ASSEMBLY (w/ Dynamic Rear Steering)

    Click here

  9. STABILIZE SUSPENSION

    Click here

  10. INSTALL TOE CONTROL LINK SUB-ASSEMBLY (w/o Dynamic Rear Steering)

    Click here

  11. INSTALL REAR SHOCK ABSORBER ASSEMBLY

    Click here

  12. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

    Click here

  13. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY


    1. Install the rear No. 1 suspension arm assembly with the bolt.

      Torque:
      90 N*m  { 918 kgf*cm, 66 ft.*lbf }

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  14. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY


    1. Install the rear height control sensor sub-assembly to the rear No. 1 upper control arm assembly with the nut.

      Torque:
      8.0 N*m  { 82 kgf*cm, 71 in.*lbf }

  15. INSTALL REAR SUSPENSION ARM COVER

    Click here

  16. INSTALL REAR WHEEL

    Click here

  17. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Click here

  18. INITIALIZE HEIGHT CONTROL SENSOR SIGNAL (for Single Beam Headlight)

    Click here

  19. INITIALIZE HEIGHT CONTROL SENSOR SIGNAL (for Triple Beam Headlight)

    Click here

  20. ADJUST HEADLIGHT AIMING (for Single Beam Headlight)

    Click here

  21. ADJUST HEADLIGHT AIMING (for Triple Beam Headlight)

    Click here
