REAR SHOCK ABSORBER COMPONENTS

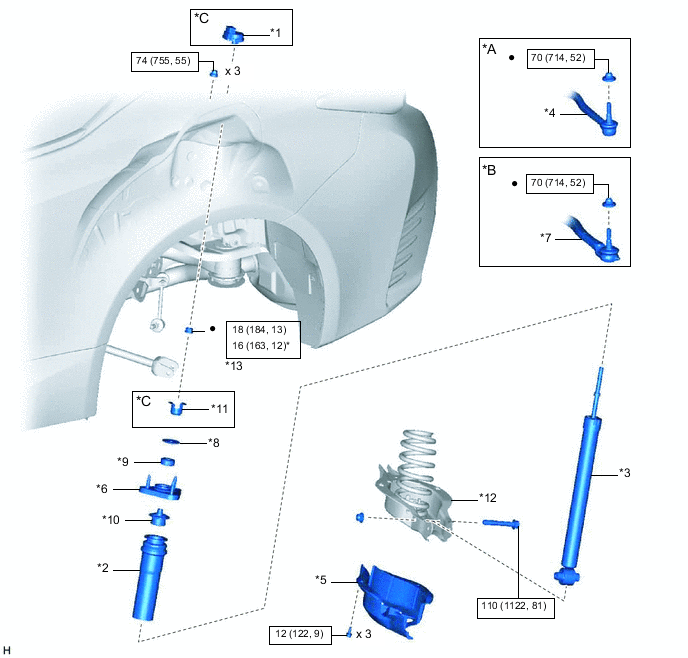

ILLUSTRATION
| *A | w/ Dynamic Rear Steering | *B | w/o Dynamic Rear Steering |
| *C | w/ AVS | - | - |
| *1 | ABSORBER CONTROL ACTUATOR | *2 | REAR NO. 1 SPRING BUMPER |
| *3 | REAR SHOCK ABSORBER ASSEMBLY | *4 | REAR STEERING TIE ROD ASSEMBLY |
| *5 | REAR SUSPENSION ARM COVER | *6 | REAR SUSPENSION SUPPORT ASSEMBLY |
| *7 | TOE CONTROL LINK SUB-ASSEMBLY | *8 | REAR SHOCK ABSORBER CUSHION WASHER |
| *9 | REAR NO. 1 SHOCK ABSORBER CUSHION | *10 | REAR NO. 2 SHOCK ABSORBER CUSHION |
| *11 | REAR ACTUATOR SUPPORT BRACKET | *12 | REAR NO. 2 SUSPENSION ARM ASSEMBLY |
| *13 | REAR SUPPORT TO REAR SHOCK ABSORBER NUT | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with Union Nut Wrench |
| ● | Non-reusable part | - | - |
