TIRE PRESSURE WARNING SYSTEM PARTS LOCATION
ILLUSTRATION
| *A | w/ Tire Inflation Pressure Display Function | - | - |
| *1 | TIRE PRESSURE WARNING ECU AND RECEIVER | *2 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER |
| *3 | FRONT TIRE PRESSURE MONITOR INITIATOR | *4 | REAR TIRE PRESSURE MONITOR INITIATOR |
ILLUSTRATION
| *A | for LHD | *B | w/ Tire Inflation Pressure Display Function |
| *1 | TIRE PRESSURE WARNING RESET SWITCH | *2 | COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE - ECU-IG1 NO. 2 FUSE |
*4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | TIRE PRESSURE MONITOR INITIATOR DRIVER | *6 | DLC3 |

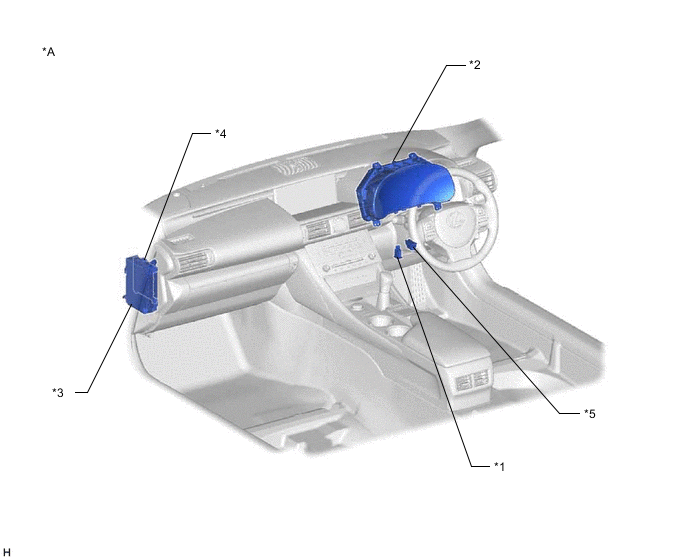

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | TIRE PRESSURE WARNING RESET SWITCH | *2 | COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE - ECU-IG1 NO. 2 FUSE |
*4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | DLC3 | - | - |
