REAR SUSPENSION MEMBER INSTALLATION

PROCEDURE


  1. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for LH Side)


    1. B00753FC01
      B0073AQ Front of the Vehicle
      B0076EM Diluted Liquid Soap

      Apply diluted liquid soap to the outside of a new rear suspension member front body mounting cushion.

      Note

      Do not use grease or undiluted liquid soap. Doing so may cause the rear suspension member front body mounting cushion to slip out.

      Tech Tips

      A 20% liquid soap and water concentration is recommended.

    2. Temporarily install the rear suspension member front body mounting cushion while confirming the installation direction.

    3. B0074RRC04
      *a Turn
      *b Hold

      Using SST, install the rear suspension member front body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member front body mounting cushion.

      SST
      09950-40011   ( 09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04051, 09957-04010, 09958-04011 )
      09950-60020   ( 09951-00910 )
      09570-24011

      Note

      Apply grease to the threads and tip of the SST center bolt before use.

  2. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for RH Side)

    Tech Tips

    Perform the same procedure as for the LH side.

  3. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for LH Side)


    1. B007560C01
      B0073AQ Front of the Vehicle
      B0076EM Diluted Liquid Soap

      Apply diluted liquid soap to the outside of a new rear suspension member rear body mounting cushion.

      Note

      Do not use grease or undiluted liquid soap. Doing so may cause the rear suspension member rear body mounting cushion to slip out.

      Tech Tips

      A 20% liquid soap and water concentration is recommended.

    2. Temporarily install the rear suspension member rear body mounting cushion while confirming the installation direction.

    3. B0074RRC05
      *a Turn
      *b Hold

      Using SST, install the rear suspension member rear body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member rear body mounting cushion.

      SST
      09950-40011   ( 09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04051, 09957-04010, 09958-04011 )
      09950-60020   ( 09951-00910 )
      09570-24011

      Note

      Apply grease to the threads and tip of the SST center bolt before use.

  4. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for RH Side)

    Tech Tips

    Perform the same procedure as for the LH side.

  5. INSTALL REAR SUSPENSION MEMBER REAR LOWER STOPPER (for LH Side)


    1. Install the rear suspension member rear lower stopper to the rear suspension member sub-assembly.

  6. INSTALL REAR SUSPENSION MEMBER REAR LOWER STOPPER (for RH Side)

    Tech Tips

    Perform the same procedure as for the LH side.

  7. INSTALL REAR SUSPENSION MEMBER REAR UPPER STOPPER (for LH Side)


    1. Install the rear suspension member rear upper stopper to the rear suspension member sub-assembly.

  8. INSTALL REAR SUSPENSION MEMBER REAR UPPER STOPPER (for RH Side)

    Tech Tips

    Perform the same procedure as for the LH side.

  9. INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

    Click here

  10. INSTALL REAR NO. 2 DIFFERENTIAL MOUNT CUSHION

    Click here

  11. INSTALL REAR STABILIZER BAR SUB-ASSEMBLY


    1. B0075TPC01
      *a Identification Mark

      Install the rear stabilizer bar sub-assembly with 2 rear No. 1 stabilizer bar brackets to the rear suspension member sub-assembly with the 4 bolts.

      Torque:
      51 N*m  { 520 kgf*cm, 38 ft.*lbf }

      Note


      • Temporarily tighten the bolt (A), and then fully tighten the 4 bolts in the order of (B), (C), (D), and (A).

      • Ensure that the identification mark is on the right side of the vehicle.

  12. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH

    Click here

  13. INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  14. INSTALL REAR NO. 1 UPPER CONTROL ARM ASSEMBLY (for LH Side)

    Click here

  15. INSTALL REAR NO. 1 UPPER CONTROL ARM ASSEMBLY (for RH Side)

    Tech Tips

    Perform the same procedure as for the LH side.

  16. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY


    1. B0073YDC02
      *a Engine Lifter
      *b Attachment
      B0076EM Attachment placement location

      Support the rear suspension member sub-assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.

      CAUTION:

      Make sure to secure the rear suspension member sub-assembly to prevent it from dropping.

      Note


      • Use attachments to keep the rear suspension member sub-assembly level.

      • The rear suspension member sub-assembly is a heavy component. Make sure that it is supported securely.

    2. Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle body.

      Note

      When raising the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

    3. Install the rear suspension member sub-assembly with the 2 rear suspension member lower stoppers, rear suspension member lower stopper sub-assembly LH and rear suspension member lower stopper sub-assembly RH with the 4 bolts (A) and 4 bolts (B).

      Torque:
      Bolt (A)
      127 N*m  { 1295 kgf*cm, 94 ft.*lbf }
      Bolt (B)
      19 N*m  { 194 kgf*cm, 14 ft.*lbf }

  17. INSTALL REAR BODY MOUNTING CUSHION SUB-ASSEMBLY LH


    1. Install the rear body mounting cushion sub-assembly LH with the 3 bolts.

      Torque:
      19 N*m  { 194 kgf*cm, 14 ft.*lbf }

  18. INSTALL REAR BODY MOUNTING CUSHION SUB-ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  19. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY

    for 2GR-FSE: Click here

    for 8AR-FTS: Click here

  20. INSTALL REAR SUSPENSION MEMBER DAMPER (for 8AR-FTS)


    1. Install the rear suspension member damper to the rear suspension member sub-assembly with the 3 bolts.

      Torque:
      20 N*m  { 204 kgf*cm, 15 ft.*lbf }

  21. INSTALL REAR DRIVE SHAFT ASSEMBLY LH

    Click here

  22. INSTALL REAR DRIVE SHAFT ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  23. INSTALL REAR AXLE ASSEMBLY LH

    Click here

  24. INSTALL REAR AXLE ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  25. CONNECT REAR UPPER CONTROL ARM ASSEMBLY LH


    1. Temporarily install the rear upper control arm assembly LH to the rear axle assembly with the bolt, nut and washer.

      Note

      Because the bolt has its own stopper, do not turn the bolt. Tighten the nut with the bolt secured.

      Tech Tips

      Insert the bolt with the threaded end facing the rear of the vehicle.

  26. CONNECT REAR UPPER CONTROL ARM ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  27. CONNECT REAR NO. 1 UPPER CONTROL ARM ASSEMBLY (for LH Side)


    1. Temporarily install the rear No. 1 upper control arm assembly to the rear axle assembly with the bolt, nut and washer.

      Note

      Because the bolt has its own stopper, do not turn the bolt. Tighten the nut with the bolt secured.

      Tech Tips

      Insert the bolt with the threaded end facing the front of the vehicle.

  28. CONNECT REAR NO. 1 UPPER CONTROL ARM ASSEMBLY (for RH Side)

    Tech Tips

    Perform the same procedure as for the LH side.

  29. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Click here

  30. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  31. INSTALL REAR LOWER COIL SPRING INSULATOR (for LH Side)

    Click here

  32. INSTALL REAR LOWER COIL SPRING INSULATOR (for RH Side)

    Tech Tips

    Perform the same procedure as for the LH side.

  33. INSTALL REAR UPPER COIL SPRING INSULATOR (for LH Side)

    Click here

  34. INSTALL REAR UPPER COIL SPRING INSULATOR (for RH Side)

    Tech Tips

    Perform the same procedure as for the LH side.

  35. INSTALL REAR COIL SPRING LH

    Click here

  36. INSTALL REAR COIL SPRING RH

    Tech Tips

    Perform the same procedure as for the LH side.

  37. TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY LH

    Click here

  38. TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  39. INSTALL REAR STABILIZER LINK ASSEMBLY LH

    Click here

  40. INSTALL REAR STABILIZER LINK ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  41. INSTALL REAR SUSPENSION MEMBER BRACE LH


    1. Install the rear suspension member brace LH to the rear suspension member sub-assembly with the 2 new bolts.

      Torque:
      56 N*m  { 571 kgf*cm, 41 ft.*lbf }

  42. INSTALL REAR SUSPENSION MEMBER BRACE RH

    Tech Tips

    Perform the same procedure as for the LH side.

  43. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    Click here

  44. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  45. TEMPORARILY INSTALL TOE CONTROL LINK SUB-ASSEMBLY LH (w/o Dynamic Rear Steering)

    Click here

  46. TEMPORARILY INSTALL TOE CONTROL LINK SUB-ASSEMBLY RH (w/o Dynamic Rear Steering)

    Tech Tips

    Perform the same procedure as for the LH side.

  47. INSTALL REAR STEERING LINK ASSEMBLY (w/ Dynamic Rear Steering)

    Click here

  48. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY


    1. Install the No. 3 parking brake cable assembly to the rear suspension member sub-assembly with the 2 bolts.

      Torque:
      19 N*m  { 194 kgf*cm, 14 ft.*lbf }

  49. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY

    Tech Tips

    Perform the same procedure as for the No. 3 parking brake cable assembly.

  50. INSTALL PARKING BRAKE ASSEMBLY (for LH Side)

    Click here

  51. INSTALL PARKING BRAKE ASSEMBLY (for RH Side)

    Tech Tips

    Perform the same procedure as for the LH side.

  52. INSTALL REAR DISC


    1. Install the 2 rear discs.

      Click here

  53. INSTALL PARKING BRAKE SHOE ADJUSTING HOLE PLUG


    1. Install the 2 parking brake shoe adjusting hole plugs.

  54. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH

    Click here

  55. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  56. ADJUST PARKING BRAKE

    Click here

  57. TEMPORARILY INSTALL REAR AXLE SHAFT NUT LH

    Click here

  58. TEMPORARILY INSTALL REAR AXLE SHAFT NUT RH

    Tech Tips

    Perform the same procedure as for the LH side.

  59. INSTALL REAR AXLE SHAFT NUT LH

    Click here

  60. INSTALL REAR AXLE SHAFT NUT RH

    Tech Tips

    Perform the same procedure as for the LH side.

  61. INSTALL REAR SPEED SENSOR LH

    Click here

  62. INSTALL REAR SPEED SENSOR RH

    Tech Tips

    Perform the same procedure as for the LH side.

  63. STABILIZE SUSPENSION

    Click here

  64. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH


    1. B0075YH

      Install the rear upper control arm assembly LH (rear axle assembly side) with the nut.

      Torque:
      190 N*m  { 1937 kgf*cm, 140 ft.*lbf }

      Note

      Because the bolt has its own stopper, do not turn the bolt. Tighten the nut with the bolt secured.

    2. B0076G0

      Install the rear speed sensor LH to the rear upper control arm assembly LH with the bolt.

      Torque:
      8.5 N*m  { 87 kgf*cm, 75 in.*lbf }

  65. INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  66. INSTALL REAR NO. 1 UPPER CONTROL ARM ASSEMBLY (for LH Side)

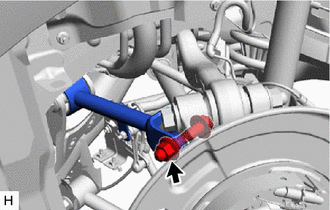

    1. B0072TY

      Install the rear No. 1 upper control arm assembly (rear axle assembly side) with the nut.

      Torque:
      150 N*m  { 1530 kgf*cm, 111 ft.*lbf }

      Note

      Because the bolt has its own stopper, do not turn the bolt. Tighten the nut with the bolt secured.

  67. INSTALL REAR NO. 1 UPPER CONTROL ARM ASSEMBLY (for RH Side)

    Tech Tips

    Perform the same procedure as for the LH side.

  68. INSTALL REAR SHOCK ABSORBER ASSEMBLY LH

    Click here

  69. INSTALL REAR SHOCK ABSORBER ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  70. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Click here

  71. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  72. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    Click here

  73. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  74. INSTALL TOE CONTROL LINK SUB-ASSEMBLY LH (w/o Dynamic Rear Steering)

    Click here

  75. INSTALL TOE CONTROL LINK SUB-ASSEMBLY RH (w/o Dynamic Rear Steering)

    Tech Tips

    Perform the same procedure as for the LH side.

  76. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY

    Click here

  77. INSTALL REAR SUSPENSION ARM COVER LH

    Click here

  78. INSTALL REAR SUSPENSION ARM COVER RH

    Tech Tips

    Perform the same procedure as for the LH side.

  79. CONNECT TAIL EXHAUST PIPE LH

    for 2GR-FSE: Click here

    for 8AR-FTS: Click here

  80. CONNECT TAIL EXHAUST PIPE ASSEMBLY

    for 2GR-FSE: Click here

    for 8AR-FTS: Click here

  81. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Click here

  82. INSTALL FRONT CENTER FLOOR BRACE


    1. Install the front center floor brace with the 6 bolts, 2 nuts and 2 clips.

      Torque:
      19 N*m  { 194 kgf*cm, 14 ft.*lbf }

  83. INSTALL FRONT CENTER FLOOR COVER LH (for Full Cover Type)


    1. Install the front center floor cover LH with the 5 clips and 5 clamps.

  84. INSTALL FRONT CENTER FLOOR COVER RH (for Full Cover Type)

    Tech Tips

    Perform the same procedure as for the LH side.

  85. INSTALL REAR FLOOR SIDE MEMBER COVER LH (for Half Cover Type)


    1. Install the rear floor side member cover LH with the 3 screws.

  86. INSTALL REAR FLOOR SIDE MEMBER COVER RH (for Half Cover Type)

    Tech Tips

    Perform the same procedure as for the LH side.

  87. INSTALL REAR WHEEL

    Click here

  88. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Click here

  89. CHECK FOR SPEED SENSOR SIGNAL

    Click here
