ABSORBER CONTROL ACTUATOR(for Rear Side) INSTALLATION

PROCEDURE


  1. INSTALL ABSORBER CONTROL ACTUATOR

    Tech Tips


    • Use the same procedure for the RH side and LH side.

    • The following procedure is for the LH side.


    1. B007637C07
      *a 40°
      *b Control Rod

      Check that the control rod of the rear shock absorber assembly is in the position shown in the illustration.

      Note

      If the control rod is not in the position shown in the illustration, turn the control rod to adjust the position before installing the absorber control actuator.

    2. B0072W5C02
      *a Absorber Control Actuator Output Shaft
      *b Control Rod

      Install the absorber control actuator to the rear actuator support bracket.

      Note

      Make sure to check that the absorber control actuator output shaft and control rod are securely connected.

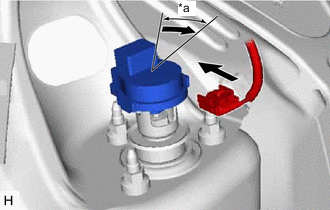

    3. B0076I4C02
      *a 40°

      Turn the absorber control actuator 40°clockwise until a click is felt.

      Note


      • Before turning the absorber control actuator, make sure to check that the absorber control actuator output shaft and control rod are securely connected.

      • Do not turn the absorber control actuator more than 40°.

      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.

    4. Connect the connector.

    5. Return the luggage compartment trim cover to its original position.

  2. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH (for LH Side)

    Click here

  3. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

    Click here

  4. INSTALL FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Click here

  5. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Click here

  6. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

    Click here

  7. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER

    Click here

  8. INSTALL SPARE WHEEL COVER TRAY

    Click here

  9. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM COVER

    Click here

  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here
