ABSORBER CONTROL ACTUATOR(for Rear Side) REMOVAL

PROCEDURE


  1. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER

    Click here

  4. REMOVE SPARE WHEEL COVER TRAY

    Click here

  5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Click here

  6. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Click here

  7. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Click here

  8. REMOVE FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Click here

  9. SEPARATE LUGGAGE COMPARTMENT TRIM COVER LH (for LH Side)

    Click here

  10. SEPARATE LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

    Click here

  11. REMOVE ABSORBER CONTROL ACTUATOR

    Tech Tips


    • Use the same procedure for the RH side and LH side.

    • The following procedure is for the LH side.


    1. Turn back the luggage compartment trim cover until the absorber control actuator can be seen.

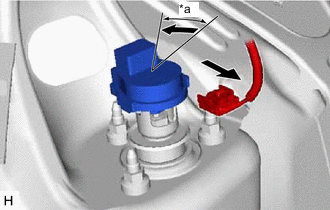

    2. B0076AJC02
      *a 40°

      Disconnect the connector.

    3. Turn the absorber control actuator 40° counterclockwise to remove it from the rear actuator support bracket.

      Note


      • Do not turn the absorber control actuator more than 40°.

      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
