REAR ACCELERATION SENSOR REMOVAL

PROCEDURE


  1. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER

    Click here

  4. REMOVE SPARE WHEEL COVER TRAY

    Click here

  5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Click here

  6. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Click here

  7. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Click here

  8. REMOVE FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Click here

  9. SEPARATE LUGGAGE COMPARTMENT TRIM COVER RH

    Click here

  10. REMOVE ACCELERATION SENSOR ASSEMBLY


    1. Turn back the luggage compartment trim cover RH until the acceleration sensor assembly can be seen.

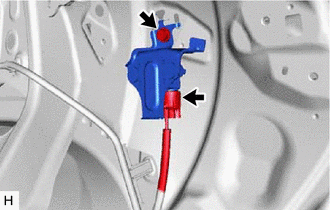

    2. B0077FE

      Disconnect the connector.

    3. Remove the bolt and acceleration sensor assembly.

      Note


      • Avoid any impact to the acceleration sensor assembly.

      • Do not drop the acceleration sensor assembly. If it is dropped, replace it with a new one.
