FRONT SHOCK ABSORBER COMPONENTS

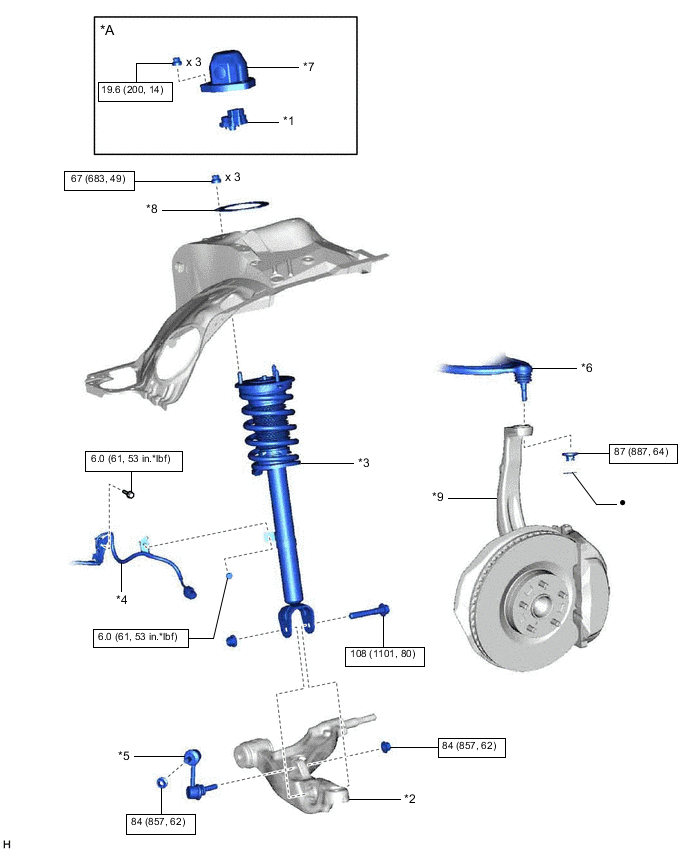

ILLUSTRATION
| *A | w/ AVS | - | - |
| *1 | ABSORBER CONTROL ACTUATOR | *2 | FRONT LOWER SUSPENSION ARM ASSEMBLY |
| *3 | FRONT SHOCK ABSORBER WITH COIL SPRING | *4 | FRONT SKID CONTROL SENSOR WIRE |
| *5 | FRONT STABILIZER LINK ASSEMBLY | *6 | FRONT UPPER SUSPENSION ARM ASSEMBLY |
| *7 | UPPER SHOCK ABSORBER CAP | *8 | FRONT NO. 3 SPRING SUPPORT REINFORCEMENT |
| *9 | STEERING KNUCKLE | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

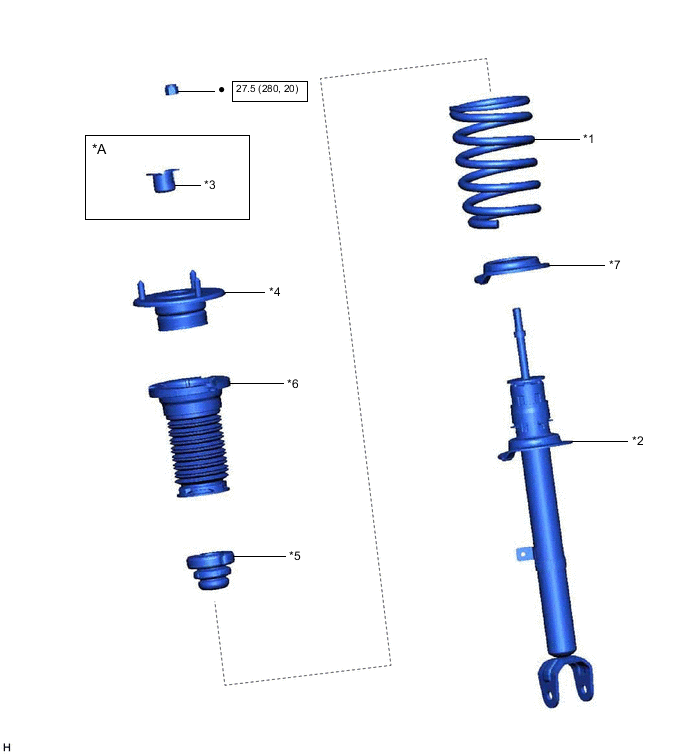

ILLUSTRATION
| *A | w/ AVS | - | - |
| *1 | FRONT COIL SPRING | *2 | FRONT SHOCK ABSORBER ASSEMBLY |
| *3 | FRONT ACTUATOR SUPPORT BRACKET | *4 | FRONT SUSPENSION SUPPORT ASSEMBLY |
| *5 | FRONT SPRING BUMPER | *6 | FRONT UPPER COIL SPRING INSULATOR |
| *7 | FRONT LOWER COIL SPRING INSULATOR | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
