ADAPTIVE VARIABLE SUSPENSION SYSTEM PARTS LOCATION
ILLUSTRATION

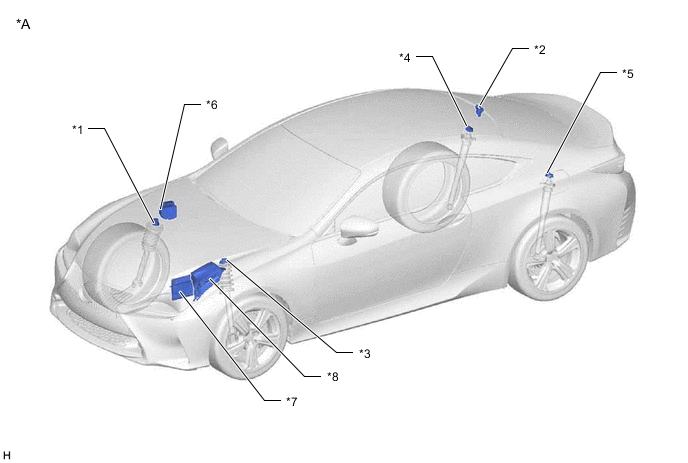

| *A | for LHD | - | - |
| *1 | FRONT ABSORBER CONTROL ACTUATOR RH | *2 | REAR ACCELERATION SENSOR |
| *3 | FRONT ABSORBER CONTROL ACTUATOR LH | *4 | REAR ABSORBER CONTROL ACTUATOR RH |
| *5 | REAR ABSORBER CONTROL ACTUATOR LH | *6 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *7 | ECM | *8 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - AVS FUSE |
ILLUSTRATION
| *A | for LHD | *B | w/ Pre-crash Safety System |
| *C | w/ Variable Gear Ratio Steering System | - | - |

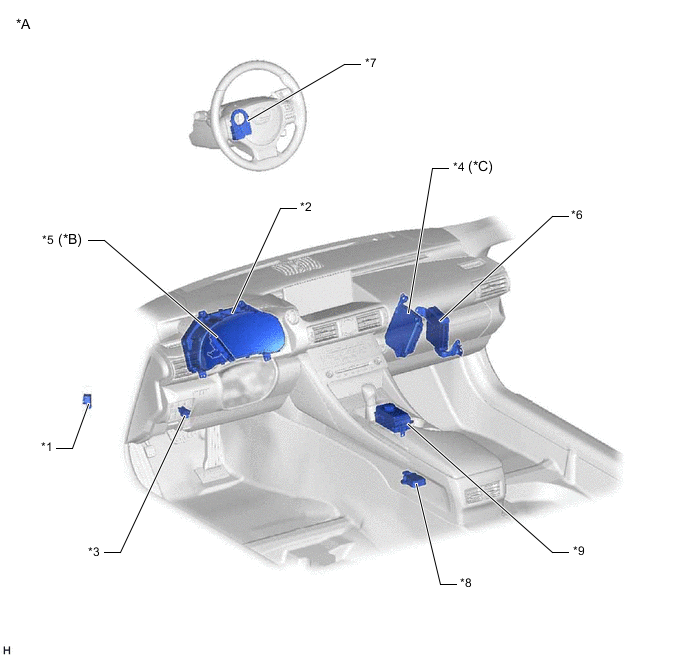

| *1 | FRONT ACCELERATION SENSOR LH | *2 | COMBINATION METER ASSEMBLY |
| *3 | DLC3 | *4 | VGRS ECU (FRONT STEERING CONTROL ECU) |
| *5 | DRIVING SUPPORT ECU ASSEMBLY | *6 | ABSORBER CONTROL ECU (Built into FRONT ACCELERATION SENSOR RH) |
| *7 | STEERING SENSOR | *8 | YAW RATE SENSOR |
| *9 | DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) | - | - |
ILLUSTRATION

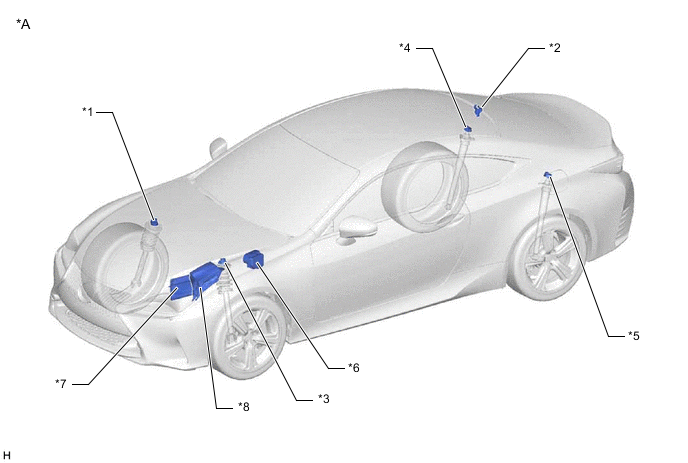

| *A | for RHD | - | - |
| *1 | FRONT ABSORBER CONTROL ACTUATOR RH | *2 | REAR ACCELERATION SENSOR |
| *3 | FRONT ABSORBER CONTROL ACTUATOR LH | *4 | REAR ABSORBER CONTROL ACTUATOR RH |
| *5 | REAR ABSORBER CONTROL ACTUATOR LH | *6 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *7 | ECM | *8 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - AVS FUSE |
ILLUSTRATION
| *A | for RHD | *B | w/ Pre-crash Safety System |
| *C | w/ Variable Gear Ratio Steering System | - | - |

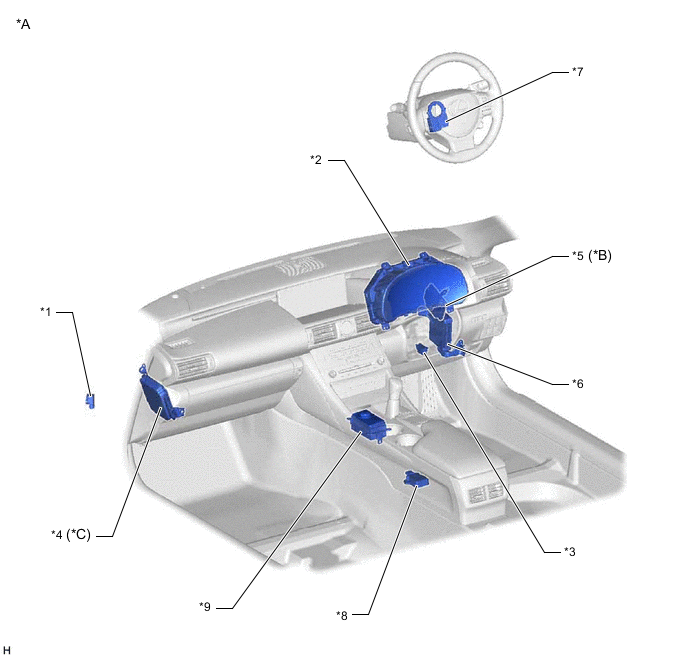

| *1 | FRONT ACCELERATION SENSOR LH | *2 | COMBINATION METER ASSEMBLY |
| *3 | DLC3 | *4 | VGRS ECU (FRONT STEERING CONTROL ECU) |
| *5 | DRIVING SUPPORT ECU ASSEMBLY | *6 | ABSORBER CONTROL ECU (Built into FRONT ACCELERATION SENSOR RH) |
| *7 | STEERING SENSOR | *8 | YAW RATE SENSOR |
| *9 | DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) | - | - |
