BLACK OUT TAPE (for Front Door) INSTALLATION

Tech Tips

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.
When installing the black out tape and window frame moulding, heat the vehicle body, black out tape and window frame moulding using a heat light.

Standard

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Black Out Tape	20 to 30°C (68 to 86°F)
Window Frame Moulding	20 to 30°C (68 to 86°F)

Note

Do not heat the vehicle body, black out tape and window frame moulding excessively.

REPAIR INSTRUCTION
1. Clean the vehicle body surface.
  1. Using a heat light, heat the vehicle body surface.
  2. Wipe off any tape adhesive residue with cleaner.
2. Installation temperature
  1. When the ambient temperature is below 15°C (59°F), perform the installation procedure after warming up the vehicle body surface (installation surface of the door frame) and tape to between 20 and 30°C (68 and 86°F) using a heat light. When the ambient temperature is above 35°C (95°F), cool down the vehicle body surface (installation surface of the door frame) and tape to between 20 and 30°C (68 and 86°F) prior to installation.
    Tech Tips

    The most appropriate temperature for installing the tape is 25°C (77°F).

    When the temperature is low, the tape becomes stiff and falls off easily. When the temperature is high, the tape loses elasticity.
3. Before installation
  1. Make sure any dirt on and around the vehicle body surface where the tape will be installed (installation surface of the door frame) is removed, and that the surface is smooth. If the surface is rough or dirt remains when pressing the tape onto the surface, air will be trapped under the tape and result in a poor appearance.

    Tech Tips

    Spray water on the shop floor to settle any dust.
4. Key points for handling the tape
  1. The tape bends and rolls up easily. Store the tape between flat pieces of cardboard or other similar objects and keep it dry and level.

    Note

    Do not bend the tape or leave it in high temperature places.
5. Key points for the installation of the tape (how to use a squeegee and the installation procedure for flat surfaces)
  Note

  Position the tape with a high level of accuracy to achieve a neat finish and to avoid peeling.

  The tape cannot be reused because it deforms and will not fit after removal.
  1. To avoid air bubbles, slightly raise the part of the tape that is going to be applied so that its adhesive surface does not touch the vehicle body while applying the tape. Tilt the squeegee at 40 to 50° (for pressing forward) or 30 to 45° (for pulling) to the vehicle body surface and slowly press the tape onto the vehicle body surface with a force of 20 to 30 N (2 to 3 kgf) at a constant speed of 30 to 70 mm (1.18 to 2.76 in.) per second.

    Note

    Be sure to observe the specified pressing speed, force, and angle of the squeegee to avoid wrinkles or air bubbles.

    Tech Tips

    Either angle of the squeegee (for pressing forward or for pulling) is acceptable.

    Be sure to apply the tape while removing the release paper 10 to 20 mm (0.393 to 0.787 in.) from the edge of the squeegee.
6. Key points for the installation of the tape (how to use a squeegee and the installation procedure for hemmed surfaces)
  1. If it is difficult to press the tape, press it in several steps as shown in the illustration. Use your fingers or the padded surface of a squeegee to slowly apply the tape to the hem of the vehicle, especially for a small hem.

    Tech Tips

    When applying tape to the backside of a hem, remove the release paper and use your fingers or the padded surface of a squeegee.
7. Key points for the installation of the tape (how to use a squeegee and the installation procedure for corners)
  1. Remove the release paper and apply the tape carefully with your fingers.
  2. Before applying the tape to each corner, heat the tape using a heat light and gradually apply it to avoid wrinkles on the tape and achieve a neat finish.
8. Check after installation
  1. After completing the application, check if the tape is applied neatly. If the tape is not applied neatly, apply new tape.

    Note

    Do not reuse the tape.
INSTALL NO. 4 BLACK OUT TAPE LH

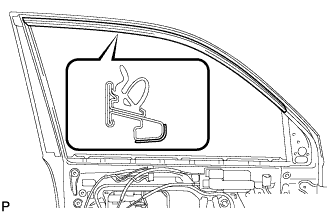

1. Refer to the illustration to position a new No. 4 black out tape.
2. Remove the release paper and apply the tape.
INSTALL NO. 3 BLACK OUT TAPE LH
1. Refer to the illustration to position a new No. 3 black out tape.
2. Remove the release paper and apply the tape.

INSTALL NO. 1 BLACK OUT TAPE LH

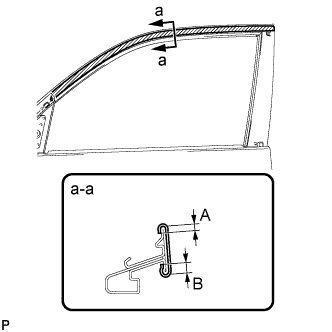

Refer to the illustration to position a new No. 1 black out tape.

Standard

Area	Dimension
A	2 to 4 mm (0.078 to 0.158 in.)
B	4 to 6 mm (0.158 to 0.236 in.)

Remove the release paper and apply the tape.

INSTALL FRONT DOOR WEATHERSTRIP LH

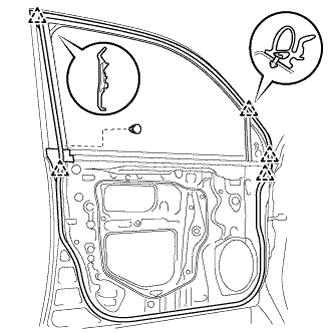

1. Attach the 5 clips and install the upper part of the front door weatherstrip.
2. Install the clip.
INSTALL LOWER DOOR FRAME GARNISH LH

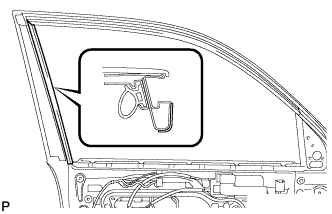

1. Attach the clip to install a new lower door frame garnish LH.
INSTALL FRONT DOOR REAR WINDOW FRAME MOULDING LH
1. Clean the vehicle body surface.
  1. Using a heat light, heat the vehicle body surface.
  2. Remove the double-sided tape from the vehicle body surface.
  3. Wipe off any tape adhesive residue with cleaner.
2. Install a new window frame moulding.
  1. Using a heat light, heat a new window frame moulding and the vehicle body surface.
  2. Remove the peeling paper from the face of the window frame moulding.

    Tech Tips

    After removing the peeling paper, keep the exposed adhesive free from foreign matter.
  3. Attach the clip and double-sided tape to install the window frame moulding.

    Tech Tips

    Press the window frame moulding firmly to install it.
INSTALL FRONT DOOR BELT MOULDING ASSEMBLY LH
1. Attach the claw to install the belt moulding.
INSTALL FRONT DOOR GLASS RUN LH
1. Install the front door glass run LH.
INSTALL FRONT DOOR GLASS SUB-ASSEMBLY LH
1. Insert the front door glass sub-assembly LH into the door panel along the glass run as indicated by the arrows in the illustration.

  Note

  Be careful not to damage the glass.
2. Install the front door glass sub-assembly LH to the front door window regulator sub-assembly LH with the 2 bolts.

  Torque:

  8.0 N*m { 82 kgf*cm, 71 in.*lbf }
INSTALL FRONT DOOR SERVICE HOLE COVER LH
1. Apply butyl tape to the door.
2. Pass the front door lock remote control cable assembly LH and front door inside locking cable assembly LH through a new front door service hole cover LH.
  Note
  - When installing the front door service hole cover LH, pull the links and connectors through the front door service hole cover LH.
  - There should be no wrinkles or folds after installing the front door service hole cover LH.
  - After installing the front door service hole cover LH, check the sealing quality.
3. Connect the 2 connectors.
4. Attach the 7 clamps.
5. Install the bolt as shown in the illustration.

  Torque:

  8.4 N*m { 86 kgf*cm, 74 in.*lbf }
INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
1. Attach the claw to install the mirror.
2. Install the 3 nuts.

  Torque:

  8.0 N*m { 82 kgf*cm, 71 in.*lbf }
3. Attach the clamp.
4. Connect the connector.
INSTALL DOOR TRIM COVER LH
1. Attach the 7 clips to install the door trim cover LH.
INSTALL FRONT DOOR PANEL CUSHION
1. Install the front No. 1 door stiffener cushion with the screw.
INSTALL FRONT INNER DOOR GLASS WEATHERSTRIP LH
1. Attach the 4 claws to install the front inner door glass weatherstrip LH.
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
1. Connect the connector.
2. Connect the front door lock remote control cable assembly LH and front door inside locking cable assembly LH to the front door inside handle sub-assembly LH.
3. Attach the 4 claws and 14 clips to install the front door trim board sub-assembly LH.
4. Install the 2 screws.
INSTALL FRONT UPPER ARMREST BASE PANEL LH
1. Connect the connector.
2. Attach the 5 claws to install the front upper armrest base panel LH.
INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
1. Attach the 3 claws to install the front door inside handle bezel plug LH.
INSTALL FRONT LOWER DOOR FRAME BRACKET GARNISH LH
1. Attach the clip and claw to install the front lower door frame bracket garnish LH.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Note

When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.
INSTALL ENGINE ROOM SIDE COVER LH
1. Install the engine room side cover LH with the 7 clips.
