FUEL LID LOCK CONTROL CABLE ASSEMBLY (for RHD) INSTALLATION


  1. INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

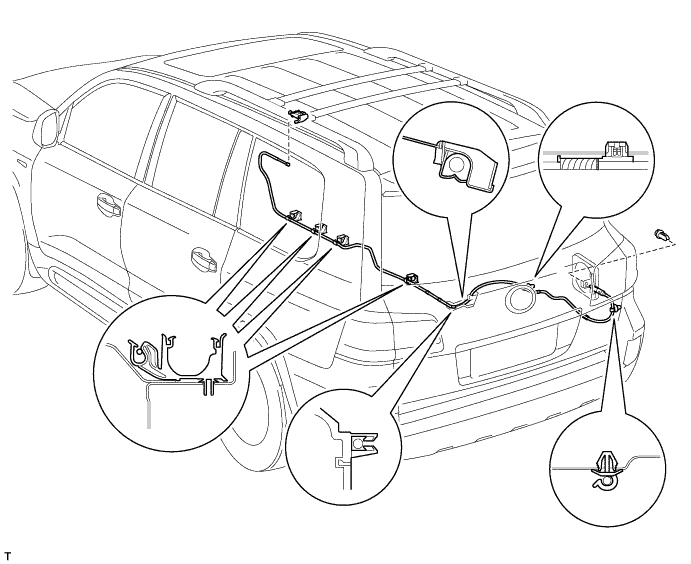

    1. Connect the cable to the clamps shown in the illustration to install the cable.

      A01EOOD

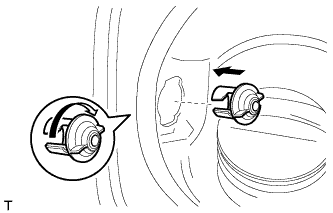

  2. INSTALL FUEL FILLER OPENING LID LOCK RETAINER


    1. A01ERAT

      Install the lock retainer and turn it clockwise as shown in the illustration.

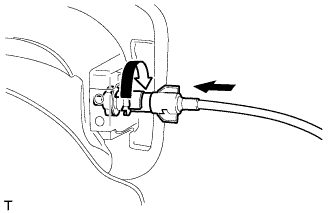

    2. A01ES73

      Install the cable to the retainer and turn it clockwise as shown in the illustration.

  3. INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY


    1. A01ES96

      Connect the fuel lid lock control cable to the fuel lid lock open lever.

    2. Attach the 2 claws to install the fuel lid lock open lever.

  4. INSTALL NO. 1 WOOFER BOX SPEAKER ASSEMBLY (for 19 Speakers)


    1. Install the box speaker with the 5 bolts.

    2. A01ENTM

      Connect the connector.

  5. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH

    A01ENK2

    Tech Tips

    When installing the front quarter trim panel, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.


    1. Connect the thermistor connector.

    2. Attach the 17 clips and 2 claws to install the quarter trim panel.

    3. Install the clip.

      A01EREO
    4. A01EQD8

      Install the rear No. 2 seat belt anchor with the bolt.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }
    5. A01ES5O

      Attach the 3 claws to install the cover.

    6. A01EPT5

      Install the rear No. 1 seat belt anchor with the bolt.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }
    7. A01EOL1

      Attach the 3 claws to install the cover.

  6. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE

    A01EQA6

    1. Attach the 6 clips and 4 claws to install the support plate.

  7. INSTALL REAR DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedures described for the LH side.

  8. INSTALL REAR STEP COVER

    Tech Tips

    Use the same procedure to install the step cover on the other side.


    1. A01EQ9D

      w/o Illumination Type Front Door Scuff Plate:

      Attach the 2 claws to install the step cover.

    2. A01EQ94

      w/ Illumination Type Front Door Scuff Plate:

      Attach the 4 claws to install the step cover.

  9. INSTALL FRONT DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedures described for the LH side.

  10. INSTALL COWL SIDE TRIM BOARD RH


    1. A01ENCL

      Attach the 2 clips to install the trim board.

    2. Install the cap nut.

  11. INSTALL INSTRUMENT SIDE PANEL RH

    A01EPKP

    1. w/o Airbag Cut Off Switch:


      1. Attach the 6 claws to install the side panel.

    2. w/ Airbag Cut Off Switch:


      1. Connect the connector.

      2. Attach the 6 claws to install the side panel.

  12. INSTALL REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)

    A01EO0XE01

    1. Temporarily install the seat with the 4 bolts.

      Note

      Be careful not to damage the vehicle body.

    2. Tighten the bolts in the order shown in the illustration.

      Torque:
      37 N*m  { 377 kgf*cm, 27 ft.*lbf }

    3. Connect the connector.

  13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  14. INSTALL REAR NO. 2 SEAT HINGE COVER RH (w/ Rear No. 2 Seat)

    A01EN8L

    1. Attach the 3 claws and 2 clips to install the cover.

  15. INSTALL REAR SEAT CUSHION HINGE COVER RH (w/ Rear No. 2 Seat)


    1. A01EN36

      Attach the 3 claws to install the cover.

    2. Return the seat to the upright position.

  16. INSTALL ENGINE ROOM SIDE COVER LH


    1. Install the engine room side cover LH with the 7 clips.
