REAR CRANKSHAFT OIL SEAL INSTALLATION


  1. INSTALL REAR CRANKSHAFT OIL SEAL


    1. Apply MP grease to the lip of a new rear crankshaft oil seal.

      Note


      • Do not allow foreign matter to contact the lip of the oil seal.

      • Do not allow MP grease to contact the dust seal.

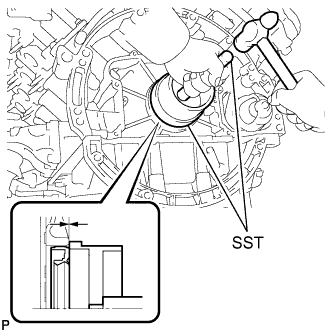

    2. A01ERG8E02

      Using SST and a hammer, tap in the rear crankshaft oil seal until its surface is flush with the rear oil seal retainer edge.

      SST
      09223-15030
      09950-70010   ( 09951-07150 )

      Note


      • Keep the lip free from foreign matter.

      • Do not tap the rear crankshaft oil seal at an angle.

  2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY


    1. Using SST, hold the crankshaft.

      SST
      09213-70011   ( 09213-70020 )
      09330-00021
    2. A01EOYT

      Install the crankshaft angle sensor rotor.

      Text in Illustration
      A01EO1M Engine Side

      Tech Tips


      • Align the pin hole of the crankshaft angle sensor rotor with the pin of the crankshaft.

      • As the crankshaft angle sensor rotor is not reversible, be sure to install it so that it is facing in the direction shown in the illustration.

    3. A01EOVGE01
      Text in Illustration
      *1 Drive Plate and Ring Gear
      *2 Rear Drive Plate Spacer
      A01EO1M Transmission Side

      Install the drive plate and ring gear and the rear drive plate spacer to the crankshaft.

      Tech Tips

      As the rear drive plate spacer and the drive plate and ring gear are not reversible, be sure to install them so that they are facing in the directions shown in the illustration.

    4. Install the drive plate and ring gear and bolts.

      Tech Tips

      The bolts are tightened in 2 progressive steps.


      1. Clean the bolts and bolt holes.

      2. A01EMX5E03
        Text in Illustration
        *1 Adhesive

        Apply adhesive to 2 or 3 threads at the end of each of the 10 bolts.

        Adhesive
        Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
      3. A01EPSHE01

        Step 1:

        Uniformly install and tighten the 10 new bolts in several steps in the sequence shown in the illustration.

        Torque:
        30 N*m  { 301 kgf*cm, 22 ft.*lbf }

      4. Mark the top of each drive plate installation bolt with paint.

      5. Step 2:

        Tighten the drive plate installation bolts 90°.

      6. Check that the painted marks are now at a 90° angle to the top.

        Note

        Do not start the engine for at least an hour after installing the drive plate.

  3. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY

    Click here
