4WD CONTROL ECU INSTALLATION


  1. INSTALL 4WD CONTROL ECU

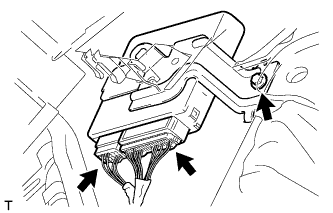

    1. A01EPTR

      Install the ECU with the bolt.

      Torque:
      13 N*m  { 127 kgf*cm, 9 ft.*lbf }

    2. Connect the 2 ECU connectors.

  2. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL (for LHD)


    1. A01EPKU

      Connect the connector.

    2. Attach the 4 claws to install the finish panel.

    3. Install the 4 bolts.

  3. INSTALL INSTRUMENT PANEL BOX DOOR KNOB (for LHD)


    1. A01EPJO

      Attach the 2 claws to install the knob.

  4. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (for LHD)


    1. A01ERSS

      Connect the connector.

      Note

      When handling the airbag connector, take care not to damage the airbag wire harness.

    2. Attach the 4 claws to install the front passenger side knee airbag.

    3. Install the 4 bolts.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

  5. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (for RHD)


    1. A01ENCE

      Connect the connector.

      Note

      When handling the airbag connector, take care not to damage the airbag wire harness.

    2. Install the driver side knee airbag with the 5 bolts.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

  6. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL (for RHD)

    A01EN2R

    1. Connect the connectors.

    2. Attach the 2 claws to install the sensor.

    3. A01EQEE

      Attach the 2 claws to connect the 2 control cables.

    4. A01EQBC

      Attach the 16 claws to install the finish panel.

    5. A01EOJD

      Install the 2 bolts.

    6. A01ENQK

      Attach the 2 claws to close the hole cover.

  7. INSTALL NO. 1 SWITCH HOLE BASE (for RHD)


    1. A01EQ09

      Connect the connectors.

    2. Attach the 5 claws to install the switch hole base.

  8. INSTALL COWL SIDE TRIM BOARD RH


    1. A01ENCL

      Attach the 2 clips to install the trim board.

    2. Install the cap nut.

  9. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for LHD)


    1. A01ESFI

      Connect the connector.

    2. Attach the 4 claws to install the under cover.

  10. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for RHD)


    1. A01EQBL

      Connect the connectors.

    2. Attach the 3 claws to install the under cover.

    3. Install the 2 screws.

  11. INSTALL FRONT DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedures described for the LH side.

  12. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH (for LHD)


    1. A01EO0O

      Attach the clip to install the cover.

  13. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH (for LHD)


    1. A01EP7O

      Attach the 9 claws to install the panel pad.

  14. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH (for RHD)


    1. A01ER40

      Attach the clip to install the cover.

    2. Install the clip.

  15. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH (for RHD)


    1. A01EO0Q

      Connect the connector.

    2. Attach the 8 claws to install the panel pad.

  16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.
