REAR NO. 1 SEAT OUTER BELT ASSEMBLY (for 5 Door) REMOVAL

Tech Tips

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.

REMOVE REAR NO. 2 SEAT ASSEMBLY LH
1. for Manual Seat Type:

  Remove the rear No. 2 seat assembly LH Click here.
2. for Power Seat Type:

  Remove the rear No. 2 seat assembly LH Click here.
3. for Face to Face Seat Type:

  Remove the rear No. 2 seat assembly LH Click here.
REMOVE REAR SEATBACK ASSEMBLY LH (for 60/40 Split Double-folding Seat Type LH Side)
1. Remove the rear seatback assembly Click here.
REMOVE REAR NO. 1 FLOOR STEP COVER (w/ Rear No. 2 Seat)
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for all rear No. 1 floor step covers.
1. Using a screwdriver, detach the 2 claws and remove the rear No. 1 floor step cover.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE QUARTER SCUFF PLATE LH (w/ Rear No. 2 Seat)
1. Remove the 2 bolts and quarter scuff plate.
REMOVE REAR DOOR SCUFF PLATE LH
Text in Illustration

*1 Protective Tape
1. Put protective tape around the rear door scuff plate.
2. Using a screwdriver, detach the 3 clips, 6 claws and 2 guides and remove the rear door scuff plate.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
1. Partially remove the rear door opening trim weatherstrip so that the front quarter trim panel assembly LH and deck trim side panel assembly LH can be removed Click here.
REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/o Rear No. 2 Seat)
Tech Tips

Use the same procedure for the other front luggage compartment trim cover.
1. Detach the 4 claws and remove the cap.
2. Text in Illustration

  *1 Luggage Hold Belt Striker

  Remove the bolt, luggage hold belt striker and front luggage compartment trim cover.
REMOVE NO. 1 DECK BOARD SUB-ASSEMBLY (w/o Rear No. 2 Seat)
1. Detach the clip and remove the No. 1 deck board.
REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/o Rear No. 2 Seat)
1. Detach the 5 clips and 4 claws and remove the rear floor mat rear support plate.
REMOVE FLOOR SIDE RAIL LH (w/ Deck Rail)
1. Remove the 3 bolts and floor side rail.
REMOVE FLOOR SIDE RAIL RH (w/ Deck Rail)

Tech Tips

Use the same procedure described for the LH side.

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Luggage Hold Belt Striker

REMOVE REAR FLOOR CARPET ASSEMBLY (w/o Rear No. 2 Seat)

Detach the 4 claws and remove the rear floor carpet.

Text in Illustration
*A	w/o Deck Rail	*B	w/ Deck Rail
*C	for Face to Face Seat Type	-	-

REMOVE REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER
Tech Tips

Use the same procedure for the other rear No. 1 seat outer lap belt anchor cover.
1. Detach the 3 claws and remove the rear No. 1 seat outer lap belt anchor cover.
REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Tech Tips

Use the same procedure for the other No. 1 luggage compartment trim hook.
1. Remove the luggage compartment trim hook by turning it clockwise.
REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/o Tonneau Cover)
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for the other No. 1 tonneau cover holder cap.
1. Using a screwdriver, detach the 2 claws and remove the No. 1 tonneau cover holder cap.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE FRONT DECK SIDE TRIM COVER LH (w/ Tonneau Cover)
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for the other front deck side trim cover.
1. Using a screwdriver, detach the 2 claws and remove the front deck side trim cover.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE ASSIST GRIP PLUG (w/ Rear No. 2 Seat)
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for all assist grip plugs.
1. Using a screwdriver, detach the 2 claws and remove the assist grip plug.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE ASSIST GRIP SUB-ASSEMBLY (w/ Rear No. 2 Seat)
Tech Tips

Use the same procedure for the other assist grip.
1. Remove the 2 bolts and assist grip.
REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
1. w/o Rear No. 2 Seat:

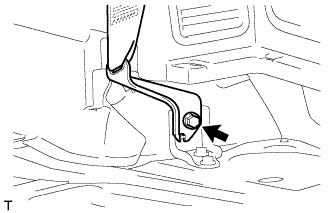

  1. Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.
  2. Detach the 6 claws and 2 guides and disconnect the rear seatback lock control lever base.
  3. Remove the 4 bolts and 2 screws.
  4. Detach the 5 clips and 8 claws.
  5. Pass the rear seatback lock control lever base through the deck trim side panel and remove the deck trim side panel.
2. w/ Rear No. 2 Seat:
  1. Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.

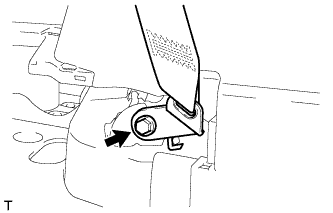

  2. Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.
  3. for RH Side:

    Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.
  4. Detach the 4 clips and 8 claws and remove the deck trim side panel.
REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH
1. Move the rear shoulder belt anchor adjuster to the lowest position.
2. Detach the 2 clips and 2 guides.
3. Pass the rear No. 1 seat outer belt floor anchor through the front quarter trim panel and remove the front quarter trim panel.
REMOVE REAR NO. 2 SEATBACK LOCK STRIKER SUB-ASSEMBLY LH (for 60/40 Split Double-folding Seat Type LH Side)
1. Remove the 2 bolts.
2. Detach the claw and remove the striker.

  Note

  Do not wipe off the grease on the sliding portion of the striker.
REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH

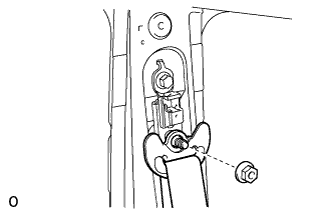

1. Remove the nut and rear No. 1 seat outer belt shoulder anchor.

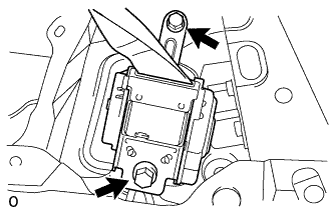

2. Remove the 2 bolts and rear No. 1 seat outer belt assembly.
