AIRBAG SYSTEM, Diagnostic DTC:B1905/74, B1906/74, B1907/74, B1908/74

DTC Code DTC Name
B1905/74 Short in Front Passenger Side Pretensioner Squib Circuit
B1906/74 Open in Front Passenger Side Pretensioner Squib Circuit
B1907/74 Short to GND in Front Passenger Side Pretensioner Squib Circuit
B1908/74 Short to B+ in Front Passenger Side Front Pretensioner Squib Circuit

DESCRIPTION

The front passenger side pretensioner squib circuit consists of the center airbag sensor and front seat outer belt LH or RH.

This circuit instructs the SRS to deploy when deployment conditions are met.

These DTCs are stored when a malfunction is detected in the front passenger side pretensioner squib circuit.

DTC Code DTC Detection Condition Trouble Area
B1905/74

One of the following conditions is met:


  • The center airbag sensor detects a line short circuit signal 5 times in the front passenger side pretensioner squib circuit during the primary check.

  • A front passenger side pretensioner squib malfunction.

  • A center airbag sensor malfunction.

  • Floor wire

  • Front seat outer belt assembly (Front passenger side pretensioner squib)

  • Center airbag sensor assembly
B1906/74

One of the following conditions is met:


  • The center airbag sensor detects open circuit signal in the front passenger side pretensioner squib circuit for 2 seconds.

  • A front passenger side pretensioner squib malfunction.

  • A center airbag sensor malfunction.

  • Floor wire

  • Front seat outer belt assembly (Front passenger side pretensioner squib)

  • Center airbag sensor assembly
B1907/74

One of the following conditions is met:


  • The center airbag sensor detects a short circuit to ground signal in the front passenger side pretensioner squib circuit for 0.5 seconds.

  • A front passenger side pretensioner squib malfunction.

  • A center airbag sensor malfunction.

  • Floor wire

  • Front seat outer belt assembly (Front passenger side pretensioner squib)

  • Center airbag sensor assembly
B1908/74

One of the following conditions is met:


  • The center airbag sensor detects a short circuit to B+ signal in the front passenger side pretensioner squib circuit for 0.5 seconds.

  • A front passenger side pretensioner squib malfunction.

  • A center airbag sensor malfunction.

  • Floor wire

  • Front seat outer belt assembly (Front passenger side pretensioner squib)

  • Center airbag sensor assembly

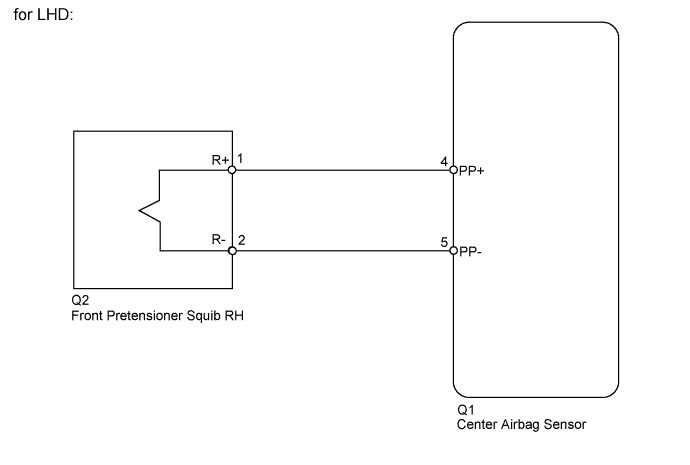

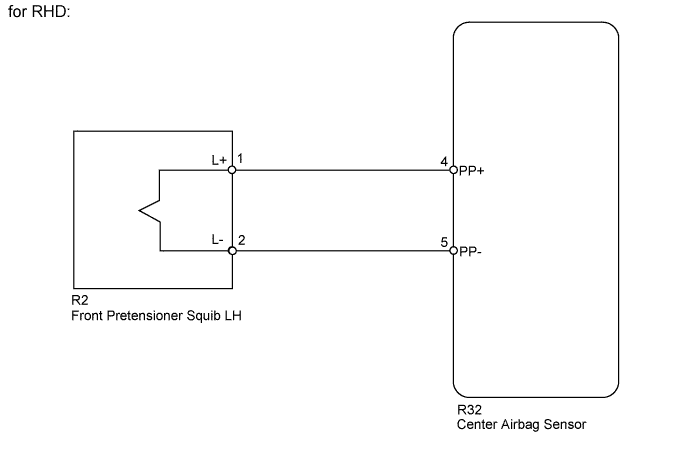

WIRING DIAGRAM

A00972ME43
A00972ME42

INSPECTION PROCEDURE

Note

When disconnecting the cable from the negative (-) battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected Click here.

Tech Tips

To perform the simulation method, enter check mode (signal check) with the intelligent tester Click here, and then wiggle each connector of the airbag system or drive the vehicle on various types of road Click here.

PROCEDURE


  1. CHECK VEHICLE TYPE


    1. Check vehicle type.

      Result
      Result Proceed to
      for LHD A
      for RHD B

    A

    CHECK FRONT SEAT OUTER BELT RH (FRONT PRETENSIONER SQUIB RH) Click here

    B

  2. CHECK FRONT SEAT OUTER BELT LH (FRONT PRETENSIONER SQUIB LH)

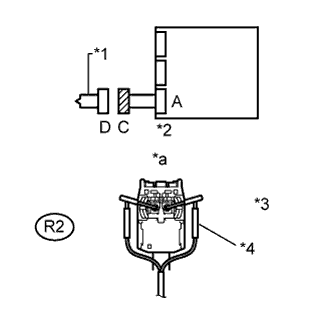

    1. A0093XDE03
      Text in Illustration
      *1 Front Pretensioner Squib LH
      *2 Center Airbag Sensor
      *3 Connector C
      *4 SST
      *a

      Front view of wire harness connector

      (to Front Pretensioner Squib LH)

      Turn the ignition switch off.

    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    3. Disconnect the connectors from the front seat outer belt LH.

    4. Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.

      CAUTION:

      Never connect the tester to the front seat outer belt LH (front pretensioner squib LH) for measurement, as this may lead to a serious injury due to airbag deployment.

      Note


      • Do not forcibly insert SST into the terminals of the connector when connecting SST.

      • Insert SST straight into the terminals of the connector.

      SST
      09843-18061

    5. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    6. Turn the ignition switch to ON, and wait for at least 60 seconds.

    7. Clear the DTCs Click here.

    8. Turn the ignition switch off.

    9. Turn the ignition switch to ON, and wait for at least 60 seconds.

    10. Check for DTCs Click here.

      OK
      DTC B1905, B1906, B1907 or B1908 is not output.

      Tech Tips

      Codes other than DTC B1905, B1906, B1907 and B1908 may be output at this time, but they are not related to this check.

      Result
      Result Proceed to
      OK (for 3 Door) A
      OK (for 5 Door) B
      NG C

    A

    REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH Click here

    B

    REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH Click here

    C

  3. CHECK CONNECTOR


    1. Turn the ignition switch off.

    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    3. Disconnect SST from connector C.

    4. A009BKVE01
      Text in Illustration
      *1 Front Pretensioner Squib LH
      *2 Center Airbag Sensor

      Check that the floor wire connector (on the front seat outer belt LH side) is not damaged.

      OK
      The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

    NG

    REPLACE FLOOR WIRE

    OK

  4. CHECK FLOOR WIRE (FRONT PRETENSIONER SQUIB LH CIRCUIT)

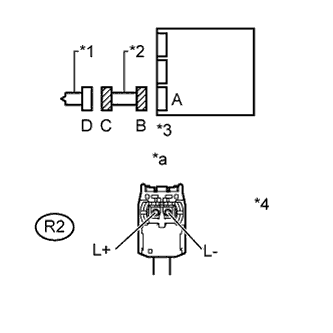

    1. A0098ZIE03
      Text in Illustration
      *1 Front Pretensioner Squib LH
      *2 Floor Wire
      *3 Center Airbag Sensor
      *4 Connector C
      *a

      Front view of wire harness connector

      (to Front Pretensioner Squib LH)

      Disconnect the connectors from the center airbag sensor.

    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      R2-1 (L+) - Body ground Ignition switch ON Below 1 V
      R2-2 (L-) - Body ground Ignition switch ON Below 1 V

    4. Turn the ignition switch off.

    5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    6. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      R2-1 (L+) - R2-2 (L-) Always Below 1 Ω

    7. Release the activation prevention mechanism built into connector B Click here.

    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      R2-1 (L+) - R2-2 (L-) Always 1 MΩ or higher
      R2-1 (L+) - Body ground Always 1 MΩ or higher
      R2-2 (L-) - Body ground Always 1 MΩ or higher

    NG

    REPLACE NO. 2 FLOOR WIRE

    OK

  5. CHECK CENTER AIRBAG SENSOR


    1. A0094VNE02
      Text in Illustration
      *1 Front Pretensioner Squib LH
      *2 Center Airbag Sensor

      Connect the connectors to the front seat outer belt LH and center airbag sensor.

    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    3. Turn the ignition switch to ON, and wait for at least 60 seconds.

    4. Clear the DTCs Click here.

    5. Turn the ignition switch off.

    6. Turn the ignition switch to ON, and wait for at least 60 seconds.

    7. Check for DTCs Click here.

      OK
      DTC B1905, B1906, B1907 or B1908 is not output.

      Tech Tips

      Codes other than DTC B1905, B1906, B1907 and B1908 may be output at this time, but they are not related to this check.


    NG

    REPLACE CENTER AIRBAG SENSOR ASSEMBLY Click here

    OK

    USE SIMULATION METHOD TO CHECK Click here

  6. CHECK FRONT SEAT OUTER BELT RH (FRONT PRETENSIONER SQUIB RH)


    1. A0093XDE02
      Text in Illustration
      *1 Front Pretensioner Squib RH
      *2 Center Airbag Sensor
      *3 Connector C
      *4 SST
      *a

      Front view of wire harness connector

      (to Front Pretensioner Squib RH)

      Turn the ignition switch off.

    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    3. Disconnect the connectors from the front seat outer belt RH.

    4. Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.

      CAUTION:

      Never connect the tester to the front seat outer belt RH (front pretensioner squib RH) for measurement, as this may lead to a serious injury due to airbag deployment.

      Note


      • Do not forcibly insert SST into the terminals of the connector when connecting SST.

      • Insert SST straight into the terminals of the connector.

      SST
      09843-18061

    5. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    6. Turn the ignition switch to ON, and wait for at least 60 seconds.

    7. Clear the DTCs Click here.

    8. Turn the ignition switch off.

    9. Turn the ignition switch to ON, and wait for at least 60 seconds.

    10. Check for DTCs Click here.

      OK
      DTC B1905, B1906, B1907 or B1908 is not output.

      Tech Tips

      Codes other than DTC B1905, B1906, B1907 and B1908 may be output at this time, but they are not related to this check.

      Result
      Result Proceed to
      OK (for 3 Door) A
      OK (for 5 Door) B
      NG C

    A

    REPLACE FRONT SEAT OUTER BELT ASSEMBLY RH Click here

    B

    REPLACE FRONT SEAT OUTER BELT ASSEMBLY RH Click here

    C

  7. CHECK CONNECTOR


    1. Turn the ignition switch off.

    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    3. Disconnect SST from connector C.

    4. A009BKVE01
      Text in Illustration
      *1 Front Pretensioner Squib RH
      *2 Center Airbag Sensor

      Check that the Floor wire connector (on the front seat outer belt RH side) is not damaged.

      OK
      The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

    NG

    REPLACE FLOOR WIRE

    OK

  8. CHECK FLOOR WIRE (FRONT PRETENSIONER SQUIB RH CIRCUIT)


    1. A0098ZIE02
      Text in Illustration
      *1 Front Pretensioner Squib RH
      *2 Floor Wire
      *3 Center Airbag Sensor
      *4 Connector C
      *a

      Front view of wire harness connector

      (to Front Pretensioner Squib RH)

      Disconnect the connectors from the center airbag sensor.

    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      Q2-1 (R+) - Body ground Ignition switch ON Below 1 V
      Q2-2 (R-) - Body ground Ignition switch ON Below 1 V

    4. Turn the ignition switch off.

    5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    6. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      Q2-1 (R+) - Q2-2 (R-) Always Below 1 Ω

    7. Release the activation prevention mechanism built into connector B Click here.

    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      Q2-1 (R+) - Q2-2 (R-) Always 1 MΩ or higher
      Q2-1 (R+) - Body ground Always 1 MΩ or higher
      Q2-2 (R-) - Body ground Always 1 MΩ or higher

    NG

    REPLACE FLOOR WIRE

    OK

  9. CHECK CENTER AIRBAG SENSOR


    1. A0094QVE37
      Text in Illustration
      *1 Front Pretensioner Squib RH
      *2 Center Airbag Sensor

      Connect the connectors to the front seat outer belt RH and center airbag sensor.

    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    3. Turn the ignition switch to ON, and wait for at least 60 seconds.

    4. Clear the DTCs stored in the memory Click here.

    5. Turn the ignition switch off.

    6. Turn the ignition switch to ON, and wait for at least 60 seconds.

    7. Check for DTCs Click here.

      OK
      DTC B1905, B1906, B1907 or B1908 is not output.

      Tech Tips

      Codes other than DTC B1905, B1906, B1907 and B1908 may be output at this time, but they are not related to this check.


    NG

    REPLACE CENTER AIRBAG SENSOR Click here

    OK

    USE SIMULATION METHOD TO CHECK Click here
