AIRBAG SYSTEM, Diagnostic DTC:B1660/43

DTC Code DTC Name
B1660/43 Passenger Airbag OFF Indicator Circuit Malfunction

DESCRIPTION

The airbag cutoff indicator circuit consists of the center airbag sensor and the airbag cutoff indicator.

The airbag cutoff indicator indicates the operation condition of the instrument panel passenger airbag, front seat side airbag and front seat outer belt.

DTC B1660/43 is stored when a malfunction is detected in the airbag cutoff indicator circuit.

DTC Code DTC Detection Condition Trouble Area
B1660/43

One of the following conditions is met:


  • The center airbag sensor detects open circuit signal, short circuit to ground signal or short circuit to B+ signal in the airbag cutoff indicator circuit for 2 seconds.

  • A airbag cutoff indicator malfunction.

  • A center airbag sensor malfunction.

  • Instrument panel wire

  • Telltale light assembly

  • Center airbag sensor assembly

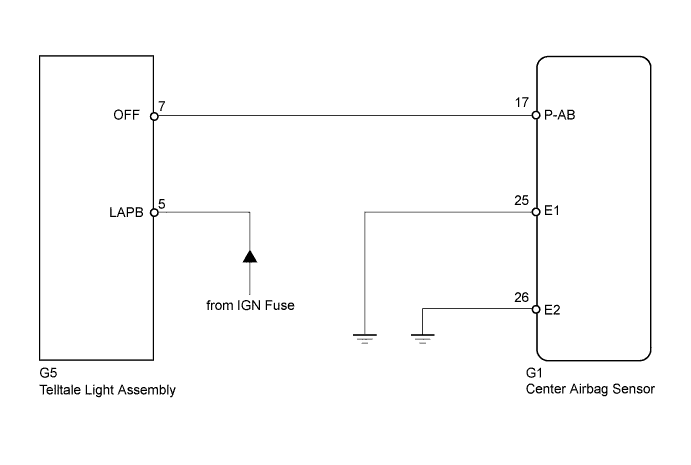

WIRING DIAGRAM

A00XDSWE02

INSPECTION PROCEDURE

Note


  • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

  • When disconnecting the cable from the negative (-) battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected Click here.

PROCEDURE


  1. CHECK PASSENGER AIRBAG CUTOFF INDICATOR CONDITION


    1. Turn the ignition switch to ON.

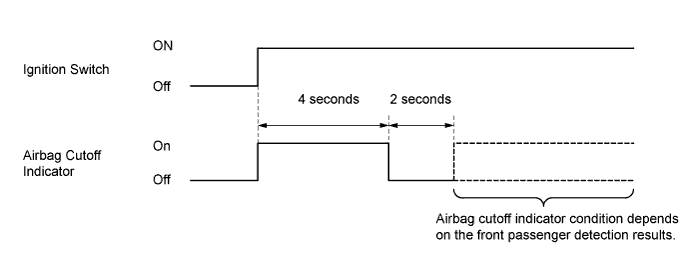

      A00XGOZE01

    2. Check the airbag cutoff indicator operation.

      Tech Tips

      Refer to the normal condition of the airbag cutoff indicator Click here.

      Result
      Result Proceed to
      Always on A
      Off B

    B

    CHECK CONNECTION OF CONNECTORS Click here

    A

  2. CHECK CONNECTION OF CONNECTORS


    1. Turn the ignition switch off.

    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    3. Check that the connectors are properly connected to the center airbag sensor and telltale light.

      OK
      The connectors are properly connected.

    NG

    CONNECT CONNECTORS PROPERLY

    OK

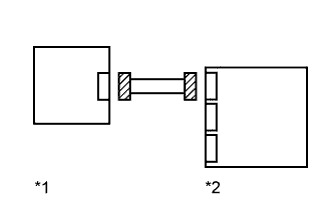

  3. CHECK CONNECTORS


    1. Disconnect the connectors from the center airbag sensor and telltale light.

    2. A00XEWCE01
      Text in Illustration
      *1 Telltale Light
      *2 Center Airbag Sensor

      Check that the connectors (on the center airbag sensor side and telltale light side) are not damaged.

      OK
      The connectors are not deformed or damaged.

    NG

    REPLACE INSTRUMENT PANEL WIRE

    OK

  4. CHECK PASSENGER AIRBAG CUTOFF INDICATOR


    1. A00XDES

      Connect the connector to the telltale light.

    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    3. Turn the ignition switch to ON.

    4. Check the airbag cutoff indicator operation.

      OK
      The airbag cutoff indicator does not come on.

    NG

    CHECK INSTRUMENT PANEL WIRE (CENTER AIRBAG SENSOR - TELLTALE LIGHT) Click here

    OK

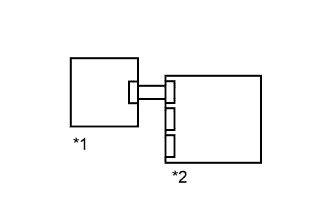

  5. CHECK CENTER AIRBAG SENSOR


    1. A00XIEXE01
      Text in Illustration
      *1 Telltale Light
      *2 Center Airbag Sensor

      Connect the connectors to the center airbag sensor.

    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    3. Turn the ignition switch to ON, and wait for at least 60 seconds.

    4. Clear the DTCs Click here.

    5. Turn the ignition switch off.

    6. Turn the ignition switch to ON, and wait for at least 60 seconds.

    7. Check for DTCs Click here.

      OK
      DTC B1660 is not output.

      Tech Tips

      Codes other than DTC B1660 may be output at this time, but they are not related to this check.


    NG

    REPLACE CENTER AIRBAG SENSOR ASSEMBLY Click here

    OK

    USE SIMULATION METHOD TO CHECK Click here

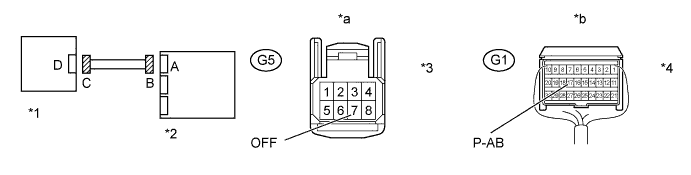

  6. CHECK INSTRUMENT PANEL WIRE (CENTER AIRBAG SENSOR - TELLTALE LIGHT)


    1. Turn the ignition switch off.

      A00XEACE02
      Text in Illustration
      *1 Telltale Light *2 Center Airbag Sensor
      *3 Connector C *4 Connector B
      *5 Service Wire - -
      *a

      Front view of wire harness connector

      (to Telltale Light)

      		 *b

      Rear view of wire harness connector

      (to Center Airbag Sensor)

    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    3. Disconnect the connectors from the center airbag sensor and telltale light.

    4. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    5. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      G5-7 (OFF) - Body ground Ignition switch ON Below 1 V

    6. Turn the ignition switch off.

    7. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      G5-7 (OFF) - G1-17 (P-AB) Always Below 1 Ω
      G5-7 (OFF) - Body ground Always 1 MΩ or higher

    NG

    REPLACE INSTRUMENT PANEL WIRE

    OK

    REPLACE TELLTALE LIGHT ASSEMBLY Click here

  7. CHECK CONNECTION OF CONNECTORS


    1. Turn the ignition switch off.

    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    3. Check that the connectors are properly connected to the center airbag sensor and telltale light.

      OK
      The connectors are properly connected.

    NG

    CONNECT CONNECTORS PROPERLY

    OK

  8. CHECK CONNECTORS


    1. Disconnect the connectors from the center airbag sensor and telltale light.

    2. A00XEWCE01
      Text in Illustration
      *1 Telltale Light
      *2 Center Airbag Sensor

      Check that the connectors (on the center airbag sensor side and telltale light side) are not damaged.

      OK
      The connectors are not deformed or damaged.

    NG

    REPLACE INSTRUMENT PANEL WIRE

    OK

  9. CHECK INSTRUMENT PANEL WIRE (CENTER AIRBAG SENSOR - TELLTALE LIGHT)


    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

      A00XEACE02
      Text in Illustration
      *1 Telltale Light *2 Center Airbag Sensor
      *3 Connector C *4 Connector B
      *5 Service Wire - -
      *a

      Front view of wire harness connector

      (to Telltale Light)

      		 *b

      Rear view of wire harness connector

      (to Center Airbag Sensor)

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      G5-7 (OFF) - Body ground Ignition switch ON Below 1 V

    3. Turn the ignition switch off.

    4. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      G5-7 (OFF) - G1-17 (P-AB) Always Below 1 Ω
      G5-7 (OFF) - Body ground Always 1 MΩ or higher

    NG

    REPLACE INSTRUMENT PANEL WIRE

    OK

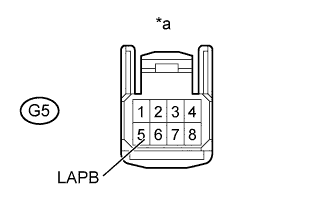

  10. CHECK PASSENGER AIRBAG CUTOFF INDICATOR (SOURCE VOLTAGE)


    1. A00XK5DE02
      Text in Illustration
      *a

      Front view of wire harness connector

      (to Telltale Light)

      Turn the ignition switch off.

    2. Connect the connectors to the center airbag sensor.

    3. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      G5-5 (LAPB) - Body ground Ignition switch ON 11 to 14 V

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (TELLTALE LIGHT - BATTERY) OR BATTERY

    OK

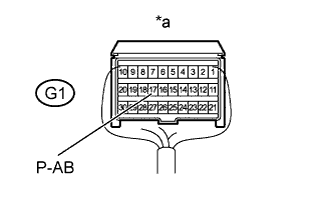

  11. CHECK PASSENGER AIRBAG CUTOFF INDICATOR


    1. A00XKAGE03
      Text in Illustration
      *a

      Rear view of wire harness connector

      (to Center Airbag Sensor)

      Turn the ignition switch off.

    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    3. Connect the connector to the telltale light.

    4. Disconnect the connectors from the center airbag sensor.

    5. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    6. Check the indicator according to the value(s) in the table below.

      OK
      Tester Connection Switch Condition Airbag Cutoff Indicator
      G1-17 (P-AB) - Body ground Ignition switch ON Indicator comes on

    NG

    REPLACE TELLTALE LIGHT ASSEMBLY Click here

    OK

  12. CHECK CENTER AIRBAG SENSOR


    1. A00XIEXE01
      Text in Illustration
      *1 Telltale Light
      *2 Center Airbag Sensor

      Turn the ignition switch off.

    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

    3. Connect the connectors to the center airbag sensor.

    4. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    5. Turn the ignition switch to ON, and wait for at least 60 seconds.

    6. Clear the DTCs Click here.

    7. Turn the ignition switch off.

    8. Turn the ignition switch to ON, and wait for at least 60 seconds.

    9. Check for DTCs Click here.

      OK
      DTC B1660 is not output.

      Tech Tips

      Codes other than DTC B1660 may be output at this time, but they are not related to this check.


    NG

    REPLACE CENTER AIRBAG SENSOR ASSEMBLY Click here

    OK

    USE SIMULATION METHOD TO CHECK Click here
