CRAWL SWITCH INSTALLATION


  1. INSTALL CRAWL CONTROL SWITCH ASSEMBLY

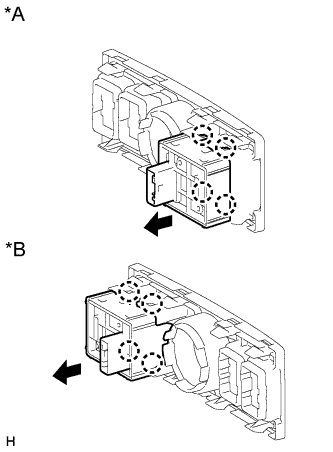

    1. A00JVOWE01
      Text in Illustration
      *A for LHD
      *B for RHD

      Attach the 4 claws to install the crawl control switch.

    2. Connect the connector.

  2. INSTALL FRONT CONSOLE UPPER PANEL GARNISH


    1. Attach the 5 clips to install the front console upper panel garnish.

  3. INSTALL INSTRUMENT PANEL FINISH PANEL END LH


    1. Attach the 4 clips to install the instrument panel finish panel end.

  4. INSTALL INSTRUMENT PANEL FINISH PANEL END RH


    1. Connect the connector.

    2. Attach the 4 clips to install the instrument panel finish panel end.

  5. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION


    1. Attach the 5 clips to install the No. 2 instrument panel finish panel cushion.

  6. INSTALL NO. 1 INSTRUMENT PANEL FINISH PANEL CUSHION

    Tech Tips

    Use the same procedure described for the No. 2 instrument panel finish panel cushion.

  7. PERFORM CRAWL CONTROL CALIBRATION


    1. Perform crawl control calibration Click here.
