CRAWL SWITCH INSPECTION


  1. INSPECT CRAWL CONTROL SWITCH

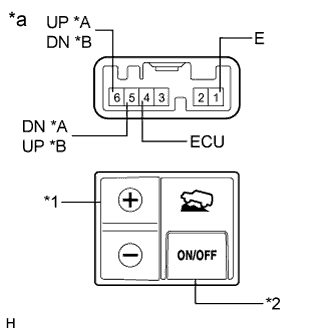

    1. A0099FKE01
      Text in Illustration
      *A for LHD
      *B for RHD
      *1 Speed Selector Switch
      *2 ON/OFF Switch
      *a

      Component without harness connected

      (Crawl Control Switch)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      for LHD:
      Tester Connection Switch Condition Specified Condition
      6 (UP) - 1 (E) "+" switch pressed Below 1 Ω
      "+" switch not pressed 10 kΩ or higher
      5 (DN) - 1 (E) "-" switch pressed Below 1 Ω
      "-" switch not pressed 10 kΩ or higher
      4 (ECU) - 1 (E) ON/OFF: Pressed Below 1 Ω
      ON/OFF: Not pressed 10 kΩ or higher
      for RHD:
      Tester Connection Switch Condition Specified Condition
      5 (UP) - 1 (E) "+" switch pressed Below 1 Ω
      "+" switch not pressed 10 kΩ or higher
      6 (DN) - 1 (E) "-" switch pressed Below 1 Ω
      "-" switch not pressed 10 kΩ or higher
      4 (ECU) - 1 (E) ON/OFF: Pressed Below 1 Ω
      ON/OFF: Not pressed 10 kΩ or higher

      If the result is not as specified, replace the crawl control switch.
