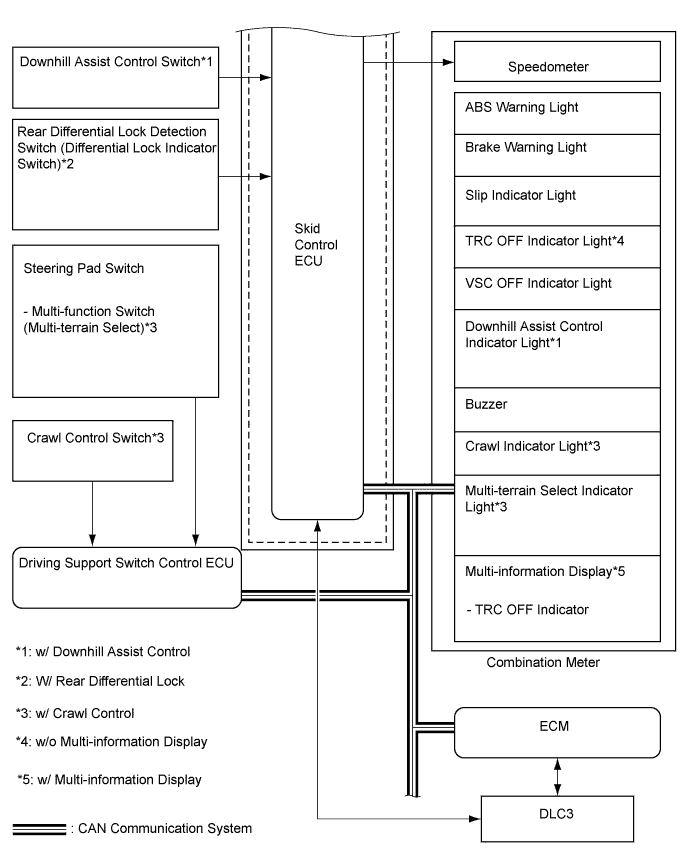

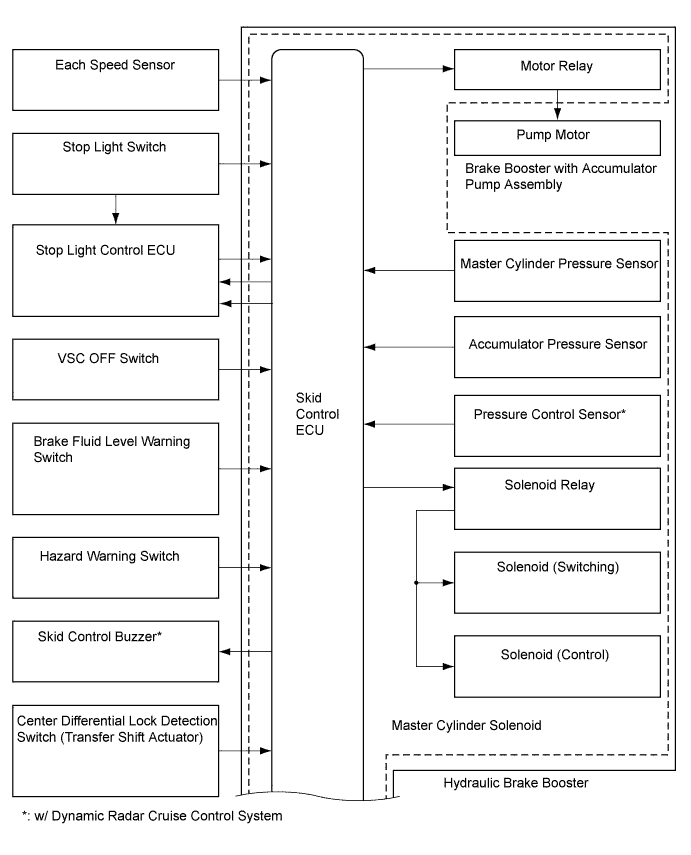

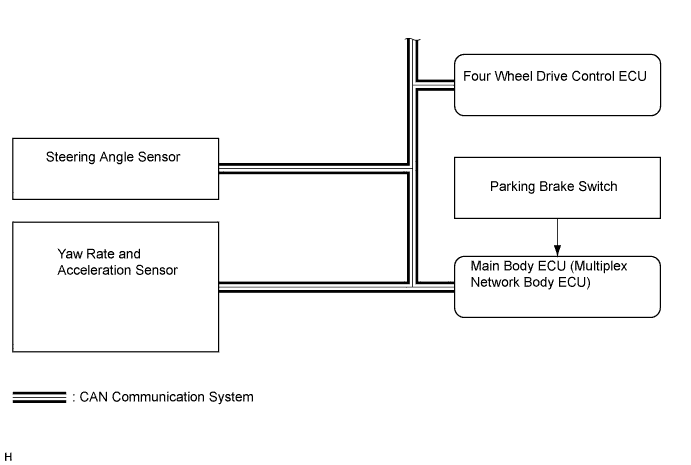

VEHICLE STABILITY CONTROL SYSTEM (for Hydraulic Brake Booster) SYSTEM DIAGRAM

A00JXNPE01
A00JWI7E01
A00JUC6E01
Communication Table
Sender Receiver Signal Line
ECM Skid control ECU

  • Engine speed signal

  • Accelerator pedal position signal

  • Intake air temperature signal

  • Shift position signal

  • TC terminal status

 CAN communication
Skid control ECU ECM

  • Yaw rate and acceleration signal

  • VSC data signal

  • Wheel speed signal

 CAN communication
Skid control ECU Combination meter

  • Warning/indicator light signal

  • Vehicle speed signal

  • Buzzer sound request signal

 CAN communication
Four wheel drive control ECU Skid control ECU L4 status signal CAN communication
Steering angle sensor Skid control ECU Steering angle signal CAN communication
