ANTI-LOCK BRAKE SYSTEM SYSTEM DIAGRAM

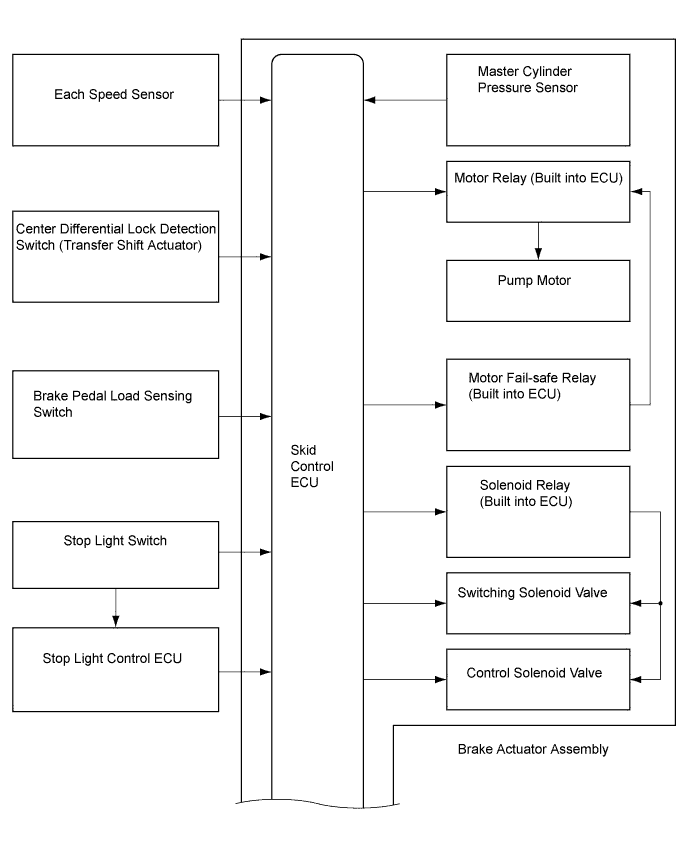

A00O3G3E01

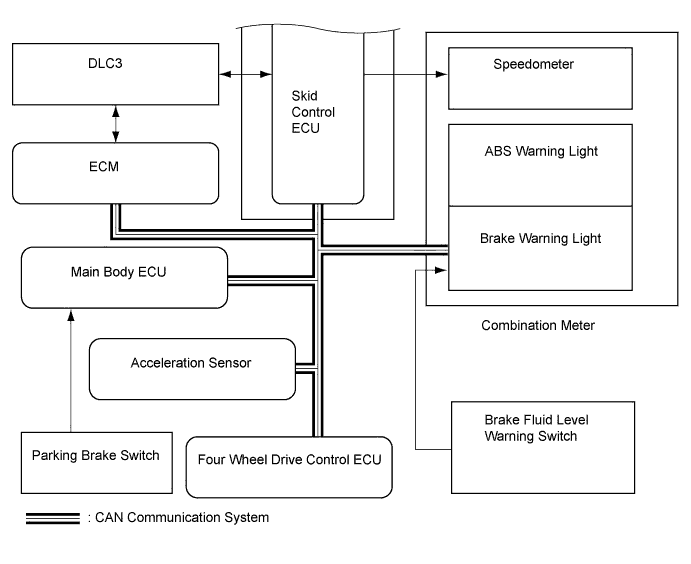

A00O5LJE01
Communication Table
Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method
Acceleration sensor Skid control ECU Acceleration signal CAN communication
Skid control ECU Combination meter

  • ABS warning light signal

  • Brake warning light signal

 CAN communication
Four wheel drive control ECU Skid control ECU

  • L4 status signal

  • Transfer shift actuator fail signal

 CAN communication

ECM

(*)

 Skid control ECU

  • Throttle position signal

  • Engine speed signal

  • Intake temperature sensor signal

 CAN communication
