CLUTCH RELEASE CYLINDER (for 2TR-FE) REMOVAL


  1. DRAIN BRAKE FLUID FROM CLUTCH LINE

  2. REMOVE FRONT PROPELLER SHAFT ASSEMBLY


    1. Remove the front propeller shaft Click here.

  3. DISCONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE

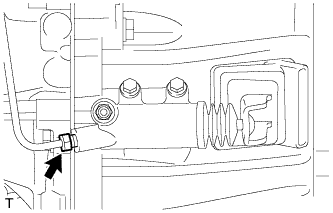

    1. A009ALX

      Using a union nut wrench, disconnect the tube.

      Tech Tips

      Use a container to catch the fluid.

  4. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY

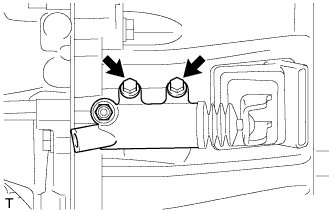

    A0099OG

    1. Remove the 2 bolts and clutch release cylinder.
