ROOF HEADLINING (for 3 Door) REMOVAL

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note


    • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  2. REMOVE REAR NO. 1 SEAT ASSEMBLY (w/ Rear No. 1 Seat)


    1. for LH Side:

      Remove the rear No. 1 seat assembly Click here.

    2. for RH Side:

      Remove the rear No. 1 seat assembly Click here.

  3. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    A00JY1DE01
    Text in Illustration
    *1 Protective Tape

    1. Put protective tape around the door scuff plate.

    2. Using a screwdriver, detach the 4 clips, 10 claws and 2 guides and remove the door scuff plate.

      Tech Tips

      Tape the screwdriver tip before use.

  4. REMOVE DOOR SCUFF PLATE ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  5. REMOVE COWL SIDE TRIM BOARD LH

    A00JYZF

    1. Remove the clip.

    2. Detach the clip and claw and remove the cowl side trim board.

  6. REMOVE COWL SIDE TRIM BOARD RH

    Tech Tips

    Use the same procedure described for the LH side.

  7. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    A00K1HG

    1. Remove the front door opening trim weatherstrip.

  8. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Tech Tips

    Use the same procedure described for the LH side.

  9. REMOVE FRONT NO. 1 ASSIST GRIP PLUG LH

    A00JZIQE01
    Text in Illustration
    *1 Protective Tape

    Tech Tips

    Use the same procedure for the other front No. 1 assist grip plug.


    1. Using a screwdriver, detach the 2 claws and remove the front No. 1 assist grip plug.

      Tech Tips

      Tape the screwdriver tip before use.

  10. REMOVE FRONT NO. 1 ASSIST GRIP PLUG RH

    Tech Tips

    Use the same procedure described for the LH side.

  11. REMOVE NO. 1 ASSIST GRIP

    A00K18V

    Tech Tips

    Use the same procedure for the other No. 1 assist grip.


    1. Remove the 2 bolts.

    2. Detach the 2 claws and remove the No. 1 assist grip.

  12. REMOVE FRONT PILLAR GARNISH LH

    A00JWJA

    1. Detach the 3 guides and remove the front pillar garnish.

    2. A00K08DE01
      Text in Illustration
      *1 Curtain Shield Airbag Assembly
      *2 Adhesive Tape
      *3 Protective Cover

      w/ Curtain Shield Airbag:

      Protect the curtain shield airbag assembly.


      1. Completely cover the airbag with a cloth or nylon sheet and secure the ends of the cover with adhesive tape as shown in the illustration.

        Note

        Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.

  13. REMOVE FRONT PILLAR GARNISH RH

    Tech Tips

    Use the same procedure described for the LH side.

  14. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)


    1. Remove the tonneau cover.

  15. REMOVE MAT SET PLATE COVER

    A00K0R9E01
    Text in Illustration
    *1 Protective tape

    Tech Tips

    Use the same procedure for all mat set plate covers.


    1. Using a screwdriver, detach the 2 claws and remove the mat set plate cover.

      Tech Tips

      Tape the screwdriver tip before use.

  16. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE

    A00JXEQ

    1. Remove the 5 screws.

    2. Detach the 6 claws and remove the rear floor mat rear support plate.

  17. REMOVE QUARTER TRIM COVER HOLE LH

    A00JWNT

    1. Detach the 2 claws and 2 guides and remove the quarter trim cover hole.

  18. REMOVE QUARTER TRIM COVER HOLE RH

    Tech Tips

    Use the same procedure described for the LH side.

  19. REMOVE REAR FLOOR CARPET ASSEMBLY

    A00JXUH

    1. Remove the rear floor carpet.

  20. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    A00JZHD

    Tech Tips

    Use the same procedure for the other No. 1 luggage compartment trim hook.


    1. Remove the luggage compartment trim hook by turning it clockwise.

  21. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/o Tonneau Cover)

    A00K0X1E01
    Text in Illustration
    *1 Protective tape

    Tech Tips

    Use the same procedure for the other tonneau cover holder cap.


    1. Using a screwdriver, detach the 2 claws and remove the tonneau cover holder cap.

      Tech Tips

      Tape the screwdriver tip before use.

  22. REMOVE FRONT DECK SIDE TRIM COVER (w/ Tonneau Cover)

    A00JX1FE01
    Text in Illustration
    *1 Protective tape

    Tech Tips

    Use the same procedure for the other front deck side trim cover.


    1. Using a screwdriver, detach the 2 claws and remove the front deck side trim cover.

      Tech Tips

      Tape the screwdriver tip before use.

  23. REMOVE QUARTER TRIM POCKET TRAY

    A00K1QZE01
    Text in Illustration
    *1 Protective tape

    1. Put protective tape around the quarter trim pocket tray.

    2. Using a screwdriver, detach the 6 claws and 2 guides, and remove the quarter trim pocket tray.

      Tech Tips

      Tape the screwdriver tip before use.

  24. REMOVE OUTER LAP BELT ANCHOR COVER

    A00JV70

    Tech Tips

    Use the same procedure for the other outer lap belt anchor cover.


    1. Detach the 3 claws and remove the outer lap belt anchor cover.

  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    A00JUHN

    1. Remove the bolt and disconnect the front seat outer belt floor anchor.

    2. A00JYWY

      Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.

    3. Remove the 3 bolts and 2 screws.

    4. Detach the 9 claws and 12 clips and remove the deck trim side panel.

      A00JV8B

  26. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    A00JVMW

    1. Remove the bolt and disconnect the front seat outer belt floor anchor.

    2. A00K0LJ

      Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.

    3. Remove the 3 bolts and 2 screws.

    4. Detach the 9 claws and 12 clips.

    5. Disconnect the connector and remove the deck trim side panel.

      A00JZOE

  27. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH

    A00K22U

    1. Move the front shoulder belt anchor adjuster to the lowest position.

    2. Remove the bolt.

    3. Detach the 2 clips and 2 guides.

    4. Pass the front seat outer belt floor anchor through the front quarter trim panel and remove the front quarter trim panel.

  28. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  29. REMOVE REAR QUARTER TRIM PANEL ASSEMBLY LH

    A00JZIS

    1. Detach the 7 clips.

    2. A00JUS8

      Detach the 4 claws and 2 guides, pass the rear No. 1 seat belt floor anchor through the rear quarter trim panel and remove the rear quarter trim panel.

  30. REMOVE REAR QUARTER TRIM PANEL ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  31. REMOVE ASSIST GRIP SUB-ASSEMBLY

    A00JV7LE03
    Text in Illustration
    *1 Protective Tape

    Tech Tips

    Use the same procedure for the other assist grip.


    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      Tech Tips

      Tape the screwdriver tip before use.

    2. Detach the 2 clips and remove the assist grip.

    3. Remove the 2 clips from the vehicle body.

  32. REMOVE REAR ASSIST GRIP ASSEMBLY LH

    A00K1RQE03
    Text in Illustration
    *1 Protective Tape

    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      Tech Tips

      Tape the screwdriver tip before use.

    2. Detach the 2 clips and remove the assist grip.

    3. Remove the 2 clips from the vehicle body.

  33. REMOVE REAR ASSIST GRIP ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  34. REMOVE VISOR BRACKET COVER LH

    A00JYNK

    Tech Tips

    Use the same procedure for the other visor bracket cover.


    1. Detach the 4 claws and remove the visor bracket cover.

  35. REMOVE VISOR BRACKET COVER RH

    Tech Tips

    Use the same procedure described for the LH side.

  36. REMOVE VISOR ASSEMBLY LH

    A00JVK2

    1. Remove the 2 screws and visor.

  37. REMOVE VISOR ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  38. REMOVE VISOR HOLDER

    A00JY9VE02

    Tech Tips

    Use the same procedure for the other visor holder.


    1. Turn the visor holder approximately 45° and pull it out as shown in the illustration.

    2. Detach the 2 claws and remove the visor holder.

  39. REMOVE MAP LIGHT ASSEMBLY


    1. A0097TU

      Detach the 4 clips.

    2. Disconnect the connector and remove the map light.

  40. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)


    1. A0097L5

      Detach the 2 claws and remove the rain sensor cover.

  41. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)


    1. A00K06K

      Detach the 2 claws and slide the inner rear view mirror stay holder cover in the direction indicated by the arrow in the illustration.

    2. A00JZU1

      Detach the 2 claws and remove the inner rear view mirror stay holder cover.

  42. REMOVE NO. 1 ROOM LIGHT ASSEMBLY


    1. Remove the No. 1 room light assembly Click here.

  43. REMOVE NO. 2 ROOM LIGHT ASSEMBLY


    1. Remove the No. 2 room light assembly Click here.

  44. REMOVE ROOF HEADLINING ASSEMBLY

    A00JV1F

    1. w/ EC Mirror:

      Disconnect the inner mirror connector.

    2. A00K1KE

      w/ Rain Sensor:

      Disconnect the rain sensor connector.

    3. A00K1HS

      w/ Sliding Roof:

      Disconnect the drive gear connector.

    4. A00JWVU

      Disconnect the 2 connectors and detach the 3 clamps from the front pillar LH.

    5. A00K0GG

      Remove the bolt.

    6. Disconnect the 2 connectors and detach the 3 clamps from the front pillar RH.

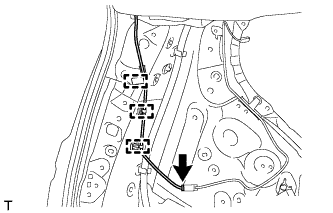

    7. A00JW0O

      Disconnect the connector and detach the 3 clamps from the rear pillar LH.

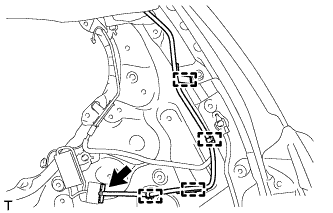

    8. A00JVQR

      Disconnect the connector and detach the 4 clamps from the rear pillar RH.

    9. A00JZ6H

      w/o Sliding Roof:


      1. Detach the 2 clips.

    10. A00JXE2E01
      Text in Illustration
      *1 Guide
      *2 Fastener

      w/ Sliding Roof:


      1. Detach the 2 clips, 2 guides and 8 fasteners.

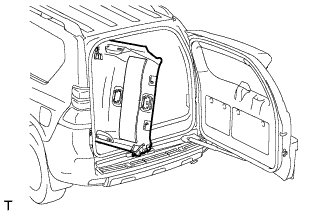

    11. A00JUB8

      Remove the roof headlining from the back door as shown in the illustration.

      Note

      Be careful not to damage the roof headlining when removing it.

  45. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH

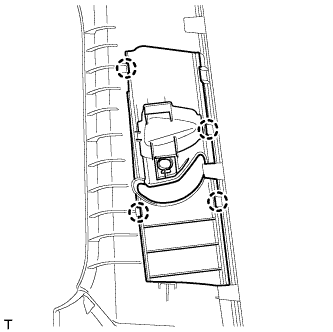

    A00JVTT

    1. Detach the 4 claws of the front shoulder belt anchor plate and slide the front shoulder belt anchor plate in the direction of the arrow to remove it.

  46. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  47. REMOVE NO. 1 ROOF SIDE RAIL GARNISH LH

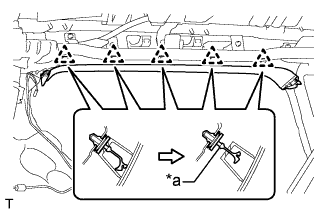

    A00JU6NE01
    Text in Illustration
    *a Cut Off Position

    1. Detach the 5 clips.

    2. Cut off the 5 clips and remove the roof side rail garnish.

    3. Remove the 5 clips from the vehicle body.

  48. REMOVE NO. 1 ROOF SIDE RAIL GARNISH RH

    Tech Tips

    Use the same procedure described for the LH side.

  49. REMOVE REAR SIDE RAIL SPACER LH (w/o Curtain Shield Airbag)

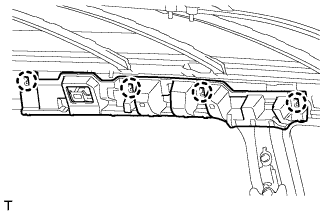

    A00JY0D

    1. Detach the 4 claws and remove the rear side rail spacer.

  50. REMOVE REAR SIDE RAIL SPACER RH (w/o Curtain Shield Airbag)

    Tech Tips

    Use the same procedure described for the LH side.

  51. REMOVE REAR NO. 2 SIDE RAIL SPACER LH

    A00K0IA

    1. Remove the clip.

    2. Detach the 4 claws and remove the rear side rail spacer.

  52. REMOVE REAR NO. 2 SIDE RAIL SPACER RH

    Tech Tips

    Use the same procedure described for the LH side.

  53. REMOVE DECK SIDE TRIM CUP HOLDER LH

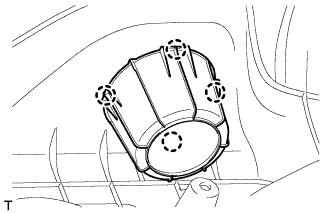

    A00JXU7

    1. Detach the 4 claws and remove the deck side trim cup holder.

  54. REMOVE DECK SIDE TRIM CUP HOLDER RH

    Tech Tips

    Use the same procedure described for the LH side.

  55. REMOVE REAR SEAT SHOULDER BELT HANGER LH

    A00K107

    1. Detach the claw and guide and remove the rear seat shoulder belt hanger.

  56. REMOVE REAR SEAT SHOULDER BELT HANGER RH

    Tech Tips

    Use the same procedure described for the LH side.

  57. REMOVE QUARTER TRIM COVER

    A00JV2R

    Tech Tips

    Use the same procedure for the other quarter trim cover.


    1. Detach the 2 claws and remove the quarter trim cover.

  58. REMOVE QUARTER TRIM JACK COVER (w/ Spare Tire)

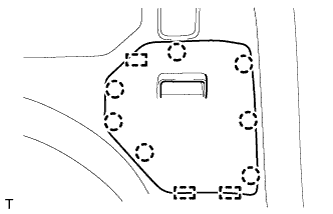

    A00JY3N

    1. Detach the 7 claws and 3 guides and remove the quarter trim jack cover.

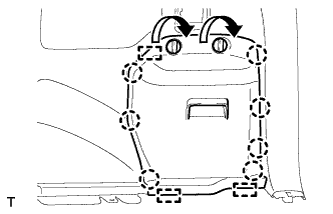

  59. REMOVE DECK SIDE TRIM COVER RH (w/o Spare Tire)

    A00JXJ5

    1. Turn the 2 knobs and release the lock.

    2. Detach the 7 claws and 3 guides and remove the deck side trim cover.
