VOLTAGE INVERTER (for 5 Door) REMOVAL


  1. REMOVE REAR NO. 1 FLOOR STEP COVER (w/ Rear No. 2 Seat)

    A00XJT0E01
    Text in Illustration
    *1 Protective Tape

    Tech Tips

    Use the same procedure for all rear No. 1 floor step covers.


    1. Using a screwdriver, detach the 2 claws and remove the rear No. 1 floor step cover.

      Tech Tips

      Tape the screwdriver tip before use.

  2. REMOVE QUARTER SCUFF PLATE RH (w/ Rear No. 2 Seat)

    Tech Tips

    Use the same procedure described for the LH side.

  3. REMOVE REAR DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedure described for the LH side.

  4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Tech Tips

    Use the same procedure described for the LH side.

  5. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)


    1. Remove the tonneau cover.

  6. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/o Rear No. 2 Seat)

    A00XHLO

    Tech Tips

    Use the same procedure for the other front luggage compartment trim cover.


    1. Detach the 4 claws and remove the cap.

    2. A00XKI2E01
      Text in Illustration
      *1 Luggage Hold Belt Striker

      Remove the bolt, luggage hold belt striker and front luggage compartment trim cover.

  7. REMOVE NO. 1 DECK BOARD SUB-ASSEMBLY (w/o Rear No. 2 Seat)

    A00XFDO

    1. Detach the clip and remove the No. 1 deck board.

  8. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/o Rear No. 2 Seat)

    A00XGTD

    1. Detach the 5 clips and 4 claws and remove the rear floor mat rear support plate.

  9. REMOVE FLOOR SIDE RAIL LH (w/ Deck Rail)

    A00XDK3

    1. Remove the 3 bolts and floor side rail.

  10. REMOVE FLOOR SIDE RAIL RH (w/ Deck Rail)

    Tech Tips

    Use the same procedure described for the LH side.

  11. REMOVE REAR FLOOR CARPET ASSEMBLY (w/o Rear No. 2 Seat)


    1. Detach the 4 claws and remove the rear floor carpet.

      A00XJD9E01
      Text in Illustration
      *A w/o Deck Rail *B w/ Deck Rail
      *C for Face to Face Seat Type - -

  12. REMOVE REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER

    A00XCE8

    Tech Tips

    Use the same procedure for the other rear No. 1 seat outer lap belt anchor cover.


    1. Detach the 3 claws and remove the rear No. 1 seat outer lap belt anchor cover.

  13. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    A00XHK8

    Tech Tips

    Use the same procedure for the other No. 1 luggage compartment trim hook.


    1. Remove the luggage compartment trim hook by turning it clockwise.

  14. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/o Tonneau Cover)

    A00XHNJE01
    Text in Illustration
    *1 Protective Tape

    Tech Tips

    Use the same procedure for the other No. 1 tonneau cover holder cap.


    1. Using a screwdriver, detach the 2 claws and remove the No. 1 tonneau cover holder cap.

      Tech Tips

      Tape the screwdriver tip before use.

  15. REMOVE FRONT DECK SIDE TRIM COVER (w/ Tonneau Cover)

    A00XI2FE01
    Text in Illustration
    *1 Protective Tape

    Tech Tips

    Use the same procedure for the other front deck side trim cover.


    1. Using a screwdriver, detach the 2 claws and remove the front deck side trim cover.

      Tech Tips

      Tape the screwdriver tip before use.

  16. REMOVE ASSIST GRIP PLUG (w/ Rear No. 2 Seat)

    A00XI26E01
    Text in Illustration
    *1 Protective Tape

    Tech Tips

    Use the same procedure for all assist grip plugs.


    1. Using a screwdriver, detach the 2 claws and remove the assist grip plug.

      Tech Tips

      Tape the screwdriver tip before use.

  17. REMOVE ASSIST GRIP SUB-ASSEMBLY (w/ Rear No. 2 Seat)

    A00XGDT

    Tech Tips

    Use the same procedure for the other assist grip.


    1. Remove the 2 bolts and assist grip.

  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH


    1. w/o Rear No. 2 Seat:


      1. A00XCL5

        Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.

      2. A00XCYB

        Detach the 6 claws and 2 guides and disconnect the rear seatback lock control lever base.

      3. Remove the 4 bolts and screws.

      4. Detach the 5 clips and 8 claws.

      5. Disconnect each connector.

      6. Pass the rear seatback lock control lever base through the deck trim side panel and remove the deck trim side panel.

        A00XI9A

    2. w/ Rear No. 2 Seat:


      1. A00XCL5

        Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.

      2. A00XI3Y

        Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.

      3. Remove the 2 bolts and screw.

      4. Detach the 4 clips and 8 claws.

      5. Disconnect each connector and remove the deck trim side panel.

        A00XDMS

  19. REMOVE VOLTAGE INVERTER ASSEMBLY

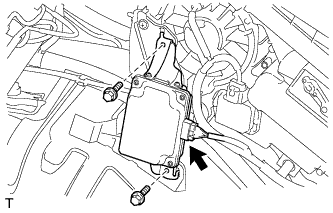

    1. A0094LQ

      Disconnect the connector.

    2. Remove the 2 bolts and voltage inverter.
