AIR CONDITIONING PRESSURE SENSOR REMOVAL


  1. REMOVE UPPER RADIATOR SUPPORT SEAL


    1. Remove the 13 clips and upper radiator support seal.

  2. REMOVE RADIATOR GRILLE


    1. Remove the radiator grille Click here.

  3. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM


    1. Start the engine.

    2. Operate the cooler compressor under the conditions shown below:

      Item Condition
      Engine Speed Idling
      Operating Time 3 minutes or more
      A/C Switch Status On
      Blower Switch Status HI
      Set Temperature MAX COOL

      This causes most of the compressor oil from the various components of the A/C system to collect in the A/C compressor.

      Note

      It is not necessary to operate the cooler compressor if the A/C does not operate because of compressor lock, etc.

    3. Stop the engine.

    4. Recover the refrigerant from the A/C system using a refrigerant recovery unit.

      Tech Tips

      Use the refrigerant recovery unit in accordance with the manufacturer's instruction manual.

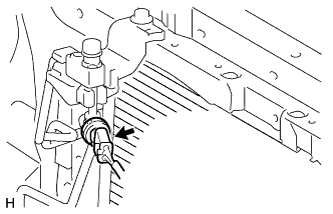

  4. REMOVE AIR CONDITIONING PRESSURE SWITCH

    A009BBY

    1. Disconnect the connector.

    2. Remove the air conditioning pressure switch.

    3. Remove the O-ring from the air conditioning pressure switch.

      Note

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.
