CENTER POWER OUTLET SOCKET REMOVAL


  1. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY

    A00O5RN

    1. Detach the 4 clips and 4 claws.

    2. Disconnect each connector and remove the rear console end panel.

  2. REMOVE POWER OUTLET SOCKET ASSEMBLY

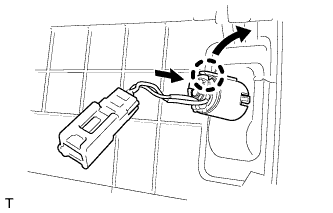

    1. A00O6GG

      While pulling the claw of the power point socket in the direction of the arrow, push the power point socket toward the inside of the chamber to remove it.

  3. REMOVE POWER OUTLET SOCKET COVER NO.2

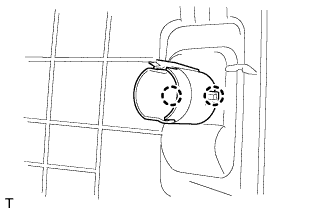

    1. A00O6PR

      Detach the 2 claws and remove the socket cover.
