POWER OUTLET SOCKET (for Bench Seat Type) REMOVAL

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.


  1. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    A00940P

    1. Detach the 4 clips.

    2. Disconnect the connector and remove the integration control and panel assembly.

  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    A00O9Z2

    1. Detach the 4 clips and remove the instrument panel finish panel end.

  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    A00OAX0

    1. Detach the 4 clips.

    2. Disconnect the connector and remove the instrument panel finish panel end.

  4. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

    A00O85FE01
    Text in Illustration
    *1 Protective Tape

    1. Put protective tape around the front console upper panel garnish.

    2. Detach the 5 clips.

    3. Disconnect each connector and remove the front console upper panel garnish.

  5. REMOVE UPPER CONSOLE PANEL

    A00O3QI

    1. Remove the 2 screws.

    2. Detach the 2 clips.

    3. A00O6U1

      Disconnect the connectors, detach the clamps and remove the upper console panel.

  6. REMOVE POWER OUTLET SOCKET ASSEMBLY


    1. Using a screwdriver, depress the claw labeled A from the front of the upper console panel.

      Tech Tips

      Tape the screwdriver tip before use.

    2. While depressing the claw labeled A, detach the claw labeled B from the back of the upper console panel, and then push out the power outlet socket in the direction of the arrow in the illustration to remove it.

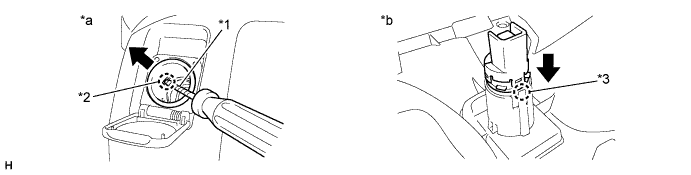

      A00O8LDE01
      Text in Illustration
      *1 Protective Tape *2 Claw A
      *3 Claw B - -
      *a Front of Upper Console Panel *b Back of Upper Console Panel

  7. REMOVE POWER OUTLET SOCKET COVER NO.2

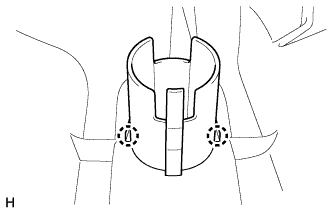

    A00O39N

    1. Detach the 2 claws and remove the power outlet socket cover.
