CONDENSER FAN INSPECTION


  1. INSPECT SHROUD BLOWER ASSEMBLY

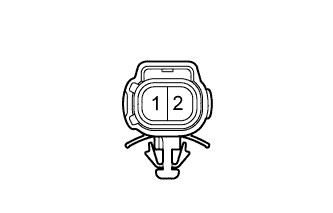

    A00977B

    1. Apply battery voltage and check the operation of the shroud blower, as shown in the table.

      OK
      Measurement Condition Specified Condition

      Battery positive (+) → Terminal 1

      Battery negative (-) → Terminal 2

      		 Shroud blower operates smoothly

      If the result is not as specified, replace the shroud blower assembly.
