CONDENSER FAN REMOVAL


  1. REMOVE UPPER RADIATOR SUPPORT SEAL


    1. Remove the 13 clips and upper radiator support seal.

  2. REMOVE RADIATOR GRILLE


    1. Remove the radiator grille Click here.

  3. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR


    1. A009BQV

      Detach the 2 clamps and 2 guides and remove the hood lock release lever protector.

  4. REMOVE HOOD LOCK ASSEMBLY


    1. for LHD:

      Remove the hood lock assembly Click here.

    2. for RHD:

      Remove the hood lock assembly Click here.

  5. REMOVE AIR CONDITIONING TUBE ASSEMBLY


    1. Detach the clamp, remove the 2 bolts and the air conditioning tube and accessory assembly.

      Tech Tips

      It is not necessary to completely remove the air conditioning tube. Move the tube so that the shroud blower can be removed.

  6. REMOVE SHROUD BLOWER ASSEMBLY

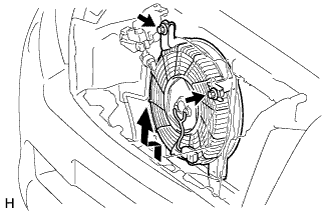

    A009BXC

    1. Disconnect the connector.

    2. Remove the bolt and shroud blower as shown in the illustration.
